Home ProductsCurrent Transformer Coil

32MW Split Core Current Transformer

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

32MW Split Core Current Transformer

32MW Split Core Current Transformer
32MW Split Core Current Transformer 32MW Split Core Current Transformer 32MW Split Core Current Transformer

Large Image :  32MW Split Core Current Transformer

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: 54.5*75.5*20.5mm
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD1~50/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

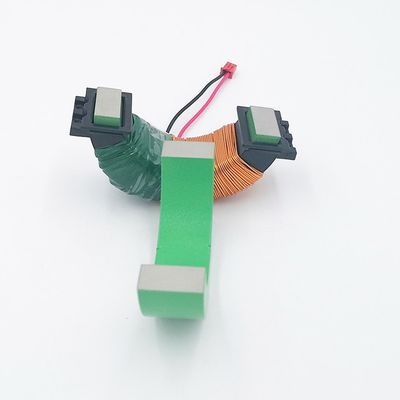

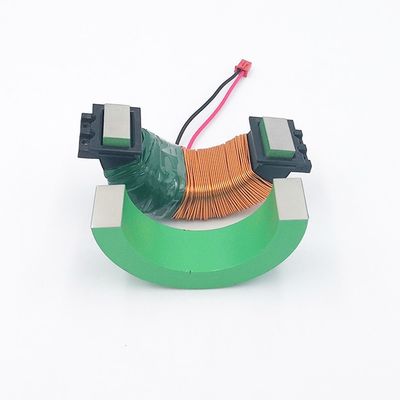

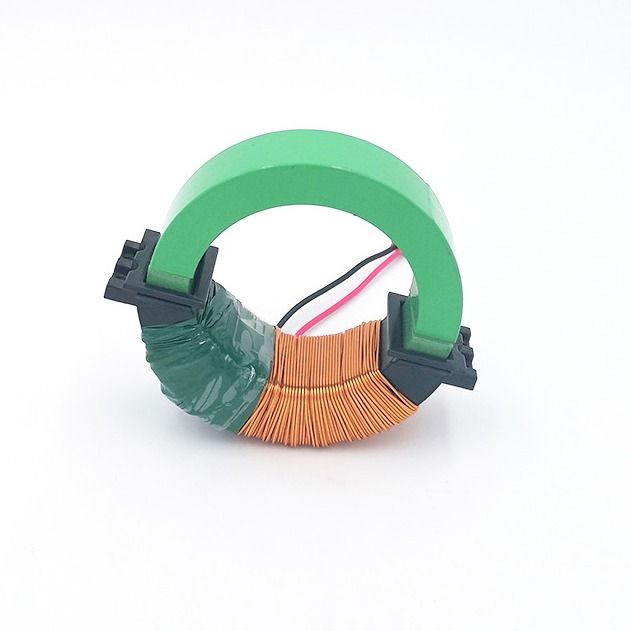

32MW Split Core Current Transformer

Description
Operation Condition: Indoor Winding Form: Single Layer & Tightly Wound Type
Installation: Active Type Core: Permalloy
Output Power: 32MW Min Voltage: 74VAC
Primary Input: 3A Coil Structure: Toroidal
High Light:

Energy Monitoring split core current transformer

,

32MW split core current transformer

,

32MW current transformer core

Hot Sales Energy Monitoring Split Core Current Transformer Manufacturer

Power coil are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.

size(mm) Input current(A) Output power(mW)
55*65*5 10 13mW min
55*75*10 5 38mW min
55*75*12 5 45mW min
48*68*15 5 50mW min
55*75*20 3 45mW min

32MW Split Core Current Transformer 032MW Split Core Current Transformer 132MW Split Core Current Transformer 2
