Ul Ac Current Transformer 32mW Energy Metering Wire Wound Transformer

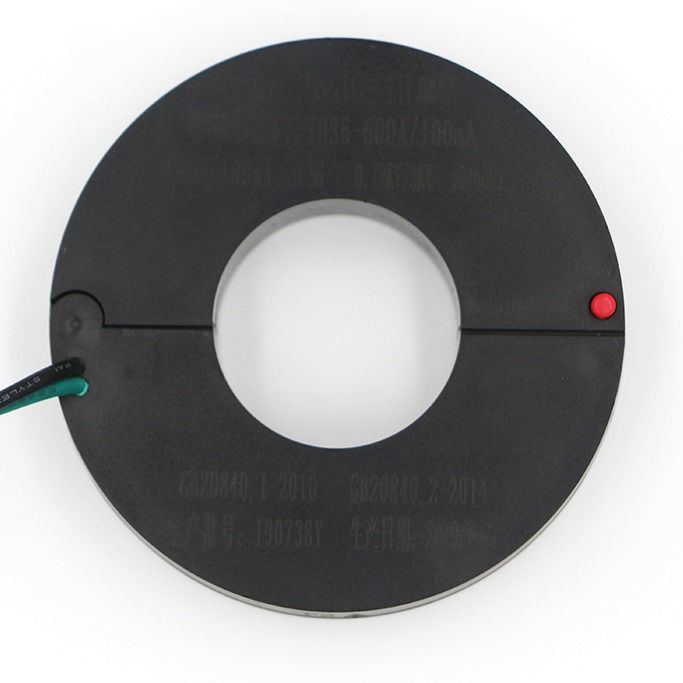

Large Image : Ul Ac Current Transformer 32mW Energy Metering Wire Wound Transformer

Product Details:

Place of Origin:	China
Brand Name:	HEMEI
Model Number:	YB36

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	Negotiable
Packaging Details:	Standard Carton
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000PCS/MONTH

Contact Now

Ul Ac Current Transformer 32mW Energy Metering Wire Wound Transformer

Description

Model NO.:	YB36	Winding Form:	Single Layer & Tightly Wound Type
Magnetic Circuit Structure:	Single Stage Type	Core:	Permalloy
Primary Input:	5A	Output Power:	32mW
Turns Ratio:	2000t	Accuracy:	0.5%
High Light:	32mW Energy ac current transformer , Ul clamp ac current transformer , Permalloy Energy Metering wire wound transformer

Split Core Current Transformer For Energy Metering Ul Transformer

HEMEI is a professional manufacturer in China devoted in research, design, and production of Split Core(Clamp on) Current Transformer(CTs), Clip on Current Sensor, Split Core Current Transducer, High precision current transformer, and mini voltage transformer. Measure AC current from 1A to 5000A, Output can be 0.333V, mA, 1A and 5A.

Feature

Split core design, safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Wide range of sizes to accommodate all the existing installations
Operating Frequency: 50 to 1000 Hz.
Output Connection: Coaxial Cable
Fire resistance: UL94-Vo
Work temperature:-20℃~+50℃
Storage temperature:-30℃~+90℃

Application:

split-core current transformer AC current from 5 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Current measurement, monitoring and protection for electrical wiring and equipment.
Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation – control system.
Current, power and energy monitoring device.
Relay protection device.

Parameter:

Inner diameter(mm)	Input current(A)	Output power(mW)
23	5A	18mW min
36	5A	32mW min
46	5A	40mW min

Ul Ac Current Transformer 32mW Energy Metering Wire Wound Transformer 0

diagram

Ul Ac Current Transformer 32mW Energy Metering Wire Wound Transformer 1
