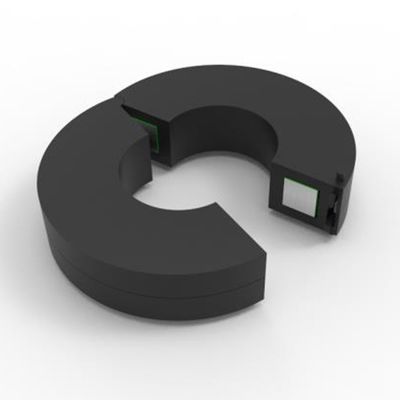

2000t Ratio Split Core Current Transformer Ct Toroidal Epoxy Encapsulated Housing

Split Core Current Transformer

The split core current transformer are designed for fast and easy installation.
The CTs are ideal for installation on existing electrical cables by clamping on the conductor.This method permits a safer,easy and portable current measurement.An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

Feature

1. Split core current transformer with interleaved joint and hinge structure
2. Wide range of sizes to accommodate all the existing installations
3. Split core CT current transformer
4. Epoxy Potting, Double-screw fastening
5. Wide inner window, allowing clamping of big cables or bus-bars
6. Test range: 5 to 1000A AC input, output of 0-10V(AC) or 0-5A
7. High accuracy and reliability
8. Test hole series size clamp leaker AC current transformer
9. Inherit the simple structure of the traditional C cores
10. Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.
11. Energy conservation & environment protection, huge potential market

Application:

split-core current transformer AC current from 5 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

1. Current measurement, monitoring and protection for electrical wiring and equipment.
2. Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation – control system.
3. Current, power and energy monitoring device.
4. Relay protection device.

Parameter:

diagram
