CTs 23mm Split Core Current Transformer Electromagnetic Energy Management System

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

CTs 23mm Split Core Current Transformer Electromagnetic Energy Management System

CTs 23mm Split Core Current Transformer Electromagnetic Energy Management System
CTs 23mm Split Core Current Transformer Electromagnetic Energy Management System CTs 23mm Split Core Current Transformer Electromagnetic Energy Management System

Large Image :  CTs 23mm Split Core Current Transformer Electromagnetic Energy Management System

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: YB42
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

CTs 23mm Split Core Current Transformer Electromagnetic Energy Management System

Description
Operation Condition: Indoor Payment Terms: T/T, Western Union, Paypal
Port: Shanghai Core: Permalloy
Primary Input: 5A Output Power: 38mW
Turns Ratio: 2000t Voltage Transformation Principle: Electromagnetic Type
Usage: Protection, Measurement Installation: Active Type
High Light:

23mm Split Core Current Transformer

,

Permalloy Split Core Current Transformer

,

23mm CT permalloy core

Split Core Current Transformer for Energy Management System

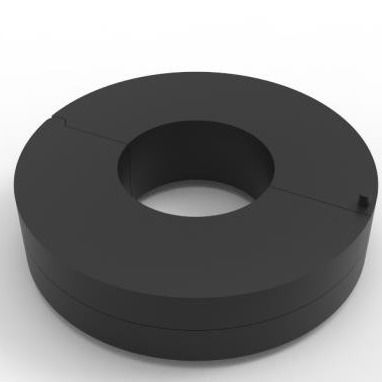

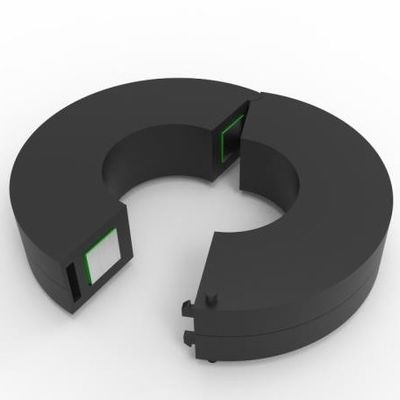

The split core current transformer are designed for fast and easy installation.
The CTs are ideal for installation on existing electrical cables by clamping on the conductor.This method permits a safer,easy and portable current measurement.An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.



Feature:

  1. Split core current transformer with interleaved joint and hinge structure
  2. Wide range of sizes to accommodate all the existing installations
  3. Split core CT current transformer
  4. Epoxy Potting, Double-screw fastening
  5. Wide inner window, allowing clamping of big cables or bus-bars
  6. Test range: 5 to 1000A AC input, output of 0-10V(AC) or 0-5A
  7. High accuracy and reliability
  8. Test hole series size clamp leaker AC current transformer
  9. Inherit the simple structure of the traditional C cores
  10. Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.
  11. Energy conservation & environment protection, huge potential market

Application:

split-core current transformer AC current from 5 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.High permeability permalloy or nanocrystalline ,with good linearity and high sensitivityExcellent balance characteristics and extremely strong immunity to electromagnetic fields



Parameter:

Inner diameter(mm) Input current(A) Output power(mW)
23 5A 18mW min
36 5A 32mW min
46 5A 40mW min
