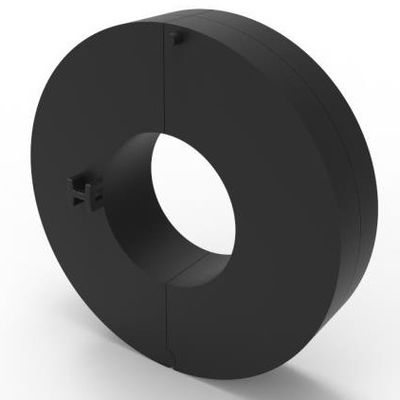

42mm 0.5 Split Core Current Transformer Wound Type Energy Monitoring

Hot Sales 0.5 Class Energy Monitoring Split Core Current Transformer 1: 2000 Manufacturer

The principle of current transformer is based on the principle of electromagnetic induction. The current transformer is composed of a closed core and windings. Its primary winding has a few turns, which are stringed in the line where the current needs to be measured. Therefore, it often has all the current flowing through the line. The secondary winding has a large number of turns, which is connected in series to the measuring instrument and the protection circuit. When the current transformer is working, its secondary side loop is always closed, so the impedance of the series coil of the measuring instrument and the protection circuit is very small, and the working state of the current transformer is close to short circuit. The current transformer is used to convert a large current on the primary side into a small current on the secondary side, and the secondary side cannot be opened.

Feature

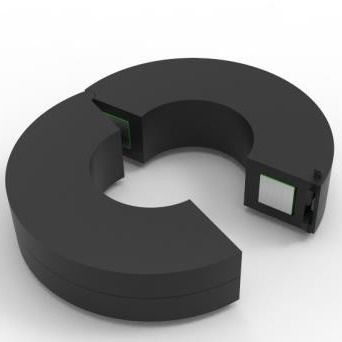

1. Split core current transformer with interleaved joint and hinge structure
2. Wide range of sizes to accommodate all the existing installations
3. Split core CT current transformer
4. Epoxy Potting, Double-screw fastening
5. Wide inner window, allowing clamping of big cables or bus-bars
6. Test range: 5 to 1000A AC input, output of 0-10V(AC) or 0-5A
7. High accuracy and reliability
8. Test hole series size clamp leaker AC current transformer
9. Inherit the simple structure of the traditional C cores
10. Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.
11. Energy conservation & environment protection, huge potential market

Application:

split-core current transformer AC current from 5 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
