Product Details:
|
| Model NO.: | YB23 | Insulating Medium: | Insulating Paper |
|---|---|---|---|
| Magnetic Circuit Structure: | Single Stage Type | Core: | Permalloy |
| Primary Input: | 5A | Output Power: | 18mW |
| Turns Ratio: | 2000t | Accuracy: | 0.5% |
| High Light: | 5A silicon Split Core Current Transformer,Single Stage Split Core Current Transformer,Permalloy current transformer for energy meter |
||

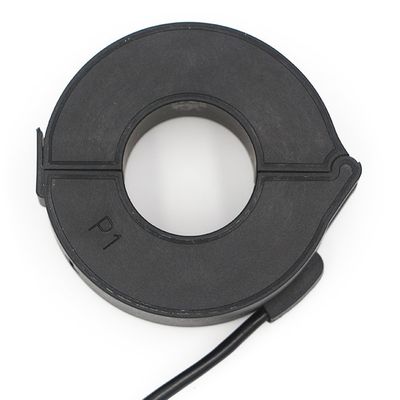

Customized Split Core Energy Management Current Transformer
split core current transformer are designed for fast and easy installation. Split-core current transformers are ideal for installation on existing electrical wiring by snapping around the conductor.This method permits a safer,easy and portable current measurement.Current measurement, monitoring and protection for electrical wiring and equipment.Current and power measurement for electric motors,lighting, air compressor,heating and ventilation system, air - condition equipment and automation control system.Current , power and energy monitoring device.Relay protection device.current transformer has been specially designed to facilitate their installation in new or already existing net works.They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
Application:
split-core current transformer AC current from 5 to 600 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.
Parameter:
| Inner diameter(mm) | Input current(A) | Output power(mW) |
| 23 | 5A | 18mW min |
| 36 | 5A | 32mW min |
| 46 | 5A | 40mW min |
diagram
