Product Details:
|
| Application: | Electronic, Instrument, Position Sensor, Audio, Lighting, Current, Power Energy, Monitoring | Phase: | Single |
|---|---|---|---|
| Insulating Medium: | Epoxy Resin | Primary Input: | 1000A |
| Output: | 500mA | Turns Ratio: | 2000t |
| Installation: | Active Type | ||
| High Light: | 1000A 500mA Clamp on Current Transformer,1000A ac Clamp on Current Transformer,500mA clip on current transformer |
||
0.1A-1000A 0.05 Class AC Clamp on Split Core Current Transformers for Monitoring

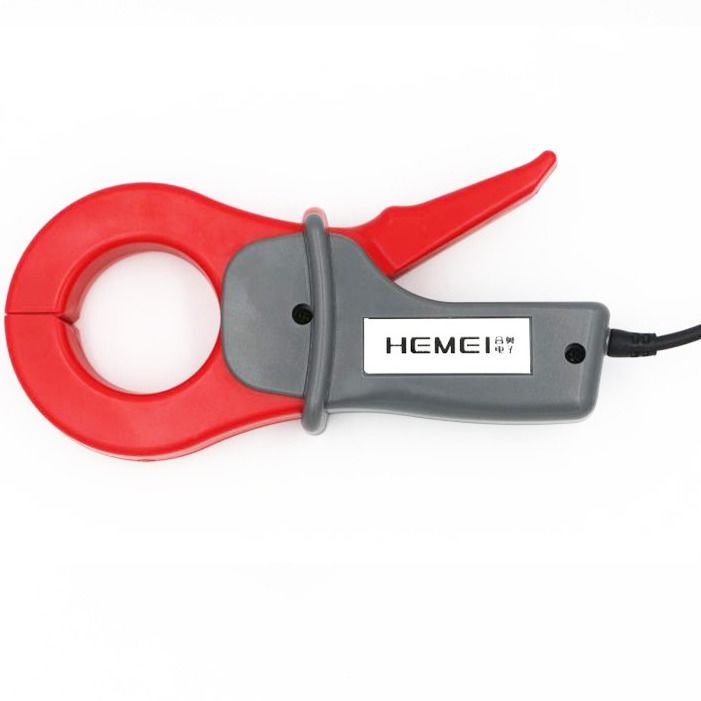

The HM-CTC1535 is a high performance AC clamp on Current transformer with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.
APPLICATION
| Current probe |
| Good appearance |
| Low cost |
| 5 standard sizes |
| Clamp-on core design,safer,easier installation, portable |
| Both Silicon Steel & Nickel Alloy cores available |
| Current or three specs voltage output signal |
| Current probe(applications) |
| Current, power energy,monitoring devices |
| Power Factor Correction devices |
| Oscilloscope and harmonic waves analyzer |
