Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM-CTC1535
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD30~100/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T
Supply Ability: 10000PCS/MONTH

HVAC 500mA Clamp On Current Transformer Leakage Clamp Type Ct Coil

Description
Application: Electronic, Instrument, Audio, Lighting Phase: Single
Insulating Medium: Epoxy Resin Measurement Range: 0.1A-1000A
Output: 500mA Turns Ratio: 2000t
Installation: Active Type
High Light:

1000A AC Clamp on Current Transformer

,

500mA Clamp on Current Transformer

,

1000A 500mA Leakage clamp type ct coil

Current Clamp for AC Current 1000A/5A AC Clamp on Current Transformer Ce UL Clamp Type Leakage Current Sensor

The HM-CTC1535 is a high performance AC clamp on Current transformer with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.split core current transformers have been specifically designed to be mini size which implement the installation of small space, calmp-on design could be easily fit around cables without breaking the circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.



APPLICATION

  • Large industrial loads
  • Measuring around cable bundles
  • Power load monitoring
  • Electrical utility
  • HVAC
  • Industrial maintenance
  • Laboratory
  • Plant maintenance
  • Cable fault tester



  • Features
    The structure of the self-locking, safe, easy to install, portable Wide inner window, allowing clamping of big cables or bus-bars Wide range of sizes to accommodate all the existing installations Isolated plastic case recognized according to UL94-V0 Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs.This CT can apply to large current testing, and it can also work with cable-fault measuring-testing instruments and Cable identification instrument for cable testing.

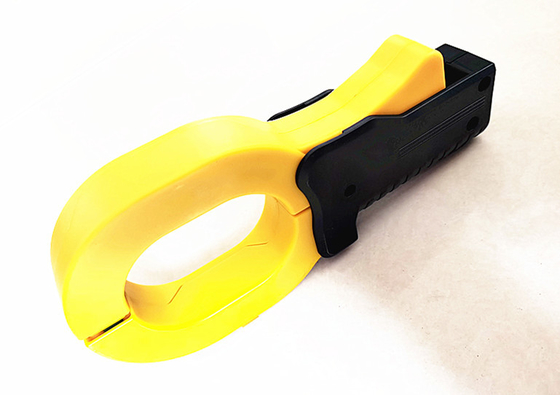

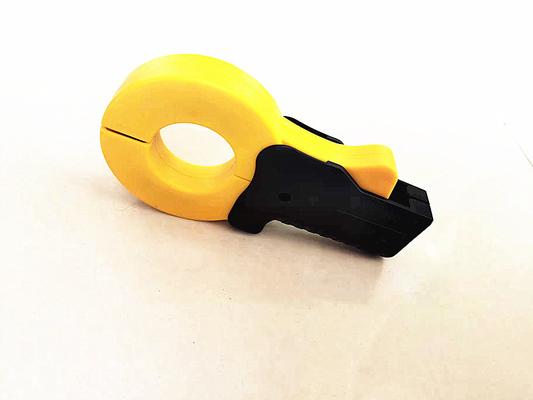

  • UL, CE markHVAC 500mA Clamp On Current Transformer Leakage Clamp Type Ct Coil 0HVAC 500mA Clamp On Current Transformer Leakage Clamp Type Ct Coil 1
  • diagram
  • HVAC 500mA Clamp On Current Transformer Leakage Clamp Type Ct Coil 2
