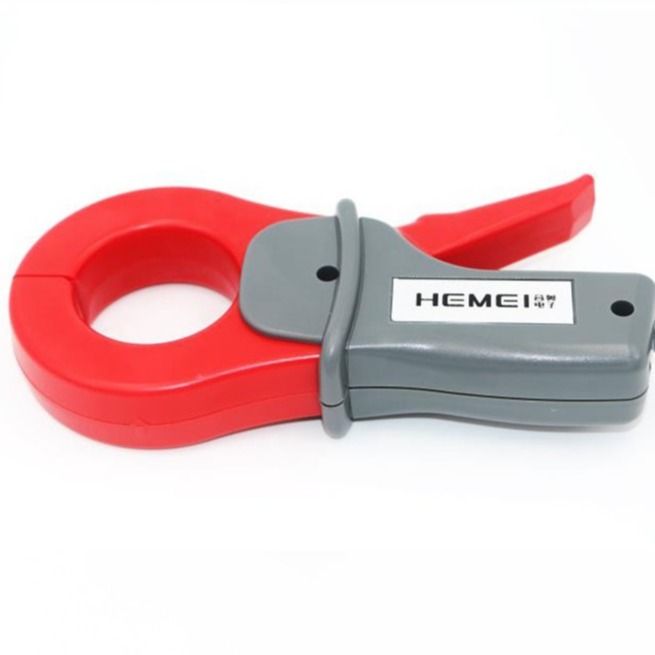

1000A 0.05 Class Clamp On Current Transformer Ct AC Monitoring

0.1A-1000A 0.05 Class AC Clamped on Split Core Current Transformers for Monitoring

1). Single-phase Current Test/quality warranty

2). Clamp-on Current Transformer

3). Current Range 100mA to 6kA

2, Mainly using for:

1). Clamp-on Current Transformer,

2). Clip on current transformer,

3). Current transformer clamp,

4). Current transformer

3, Technial index notes

1), Testing current: 100mA to 6, 000A

2), Accuracy class is divided into 0.1, 0.2, 0.5 and 1.0 grade

3), Primary current: 100mA to 6, 000A

4), Secondary current: 1mA to 5A, 0 to 5V, or DC 4 to 20mA

5), ABS anti-combustion plastic casing

Encapsulated with epoxy resin to ensure strong insulation ability

High-precision current transformers

Clamp-on current transformer

Locking snap current transformers

Split core current transformer

Reliable linear performance transformers

Strong anti-magnetic disturbance epoxy current transformers-

Completely-enclosed, good mechanical behavior, suitable for various environments, strong voltage isolation ability, delicate appearance

Notes: Suitable for single-phase electricity meter as well as anti-tampering electricity meter
Linear output current, high precision
There are standard holes on the primary lead wire which can be directly fixed on the meter terminals with standard bolts
There are standard holes on the external casing which facilitates installation on a PCB

APPLICATION

• Large industrial loads
• Electronic, Instrument
• Measuring around cable bundles
• Power load monitoring
• Electrical utility
• HVAC
• Industrial maintenance
• Laboratory
• Plant maintenance
• Cable fault tester

FEATURES
