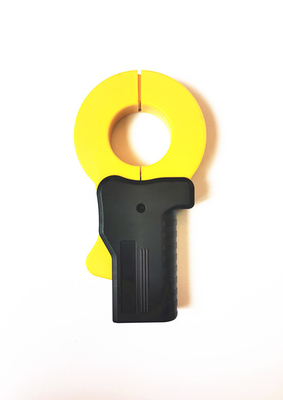

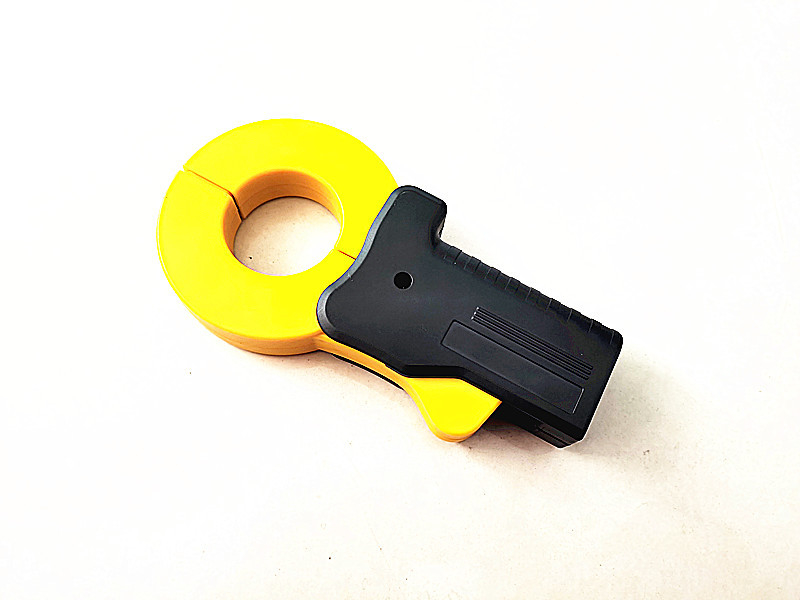

Audio Clamp On Current Transformer Ct 0.1A 2000t Ratio

Audio Clamp On Current Transformer Ct 0.1A 2000t Ratio
Audio Clamp On Current Transformer Ct 0.1A 2000t Ratio Audio Clamp On Current Transformer Ct 0.1A 2000t Ratio

Large Image :  Audio Clamp On Current Transformer Ct 0.1A 2000t Ratio

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM-CTC1535
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD30~100/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T
Supply Ability: 10000PCS/MONTH
Contact Now

Audio Clamp On Current Transformer Ct 0.1A 2000t Ratio

Description
Application: Electronic, Instrument, Audio, Lighting Phase: Single
Insulating Medium: Epoxy Resin Measurement Ranget: 0.1A-1000A
Turn Ratio: 1000:1 Turns Ratio: 2000t
Installation: Active Type
High Light:

0.1A Audio Clamp on Current Transformer

,

2000t Ratio Clamp on Current Transformer

,

2000t Ratio clamp ct transformer

Split Core Current Transformer Clamp On Type

The HM-CTC1535 is a high performance AC clamp on Current transformer with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.



APPLICATION

  • Large industrial loads
  • Measuring around cable bundles
  • Power load monitoring
  • Electrical utility
  • HVAC
  • Industrial maintenance
  • Laboratory
  • Plant maintenance
  • Cable fault tester

FEATURES

  • Measurement range of 1A to 3600A AC
  • Large jaw opening designed
  • Improved ergonomic design and easy operation
  • Conforms to EN 61010, 600V CAT III
  • Low phase shift for power measurement
  • Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to 3000AAC
  • Transformation ratio: 1000:5, 2000:5, 3000:5
  • Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
  • Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
  • UL, CE markAudio Clamp On Current Transformer Ct 0.1A 2000t Ratio 0
  • diagram
  • Audio Clamp On Current Transformer Ct 0.1A 2000t Ratio 1

Tag:

UL Leakage Clamp on Current Transformer,

Leakage clamp type ct coil,

500mA Clamp on Current Transformer
