66UH Min Toroidal Choke Coil

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

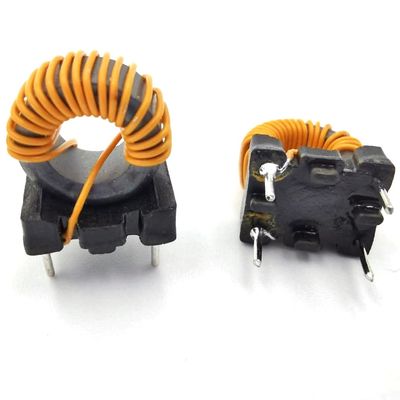

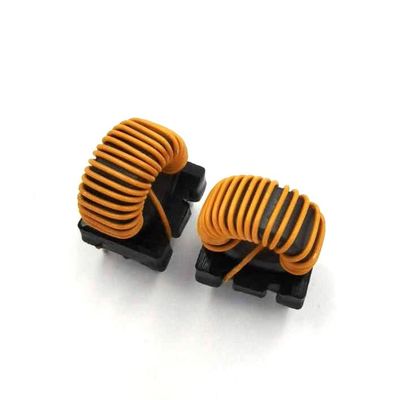

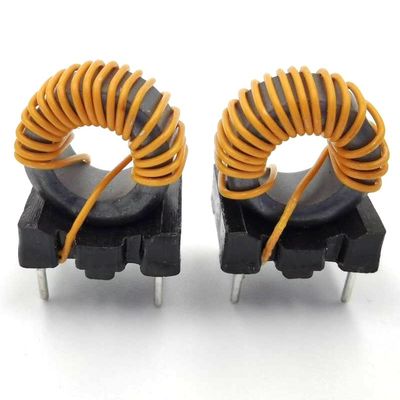

66UH Min Toroidal Choke Coil

66UH Min Toroidal Choke Coil
66UH Min Toroidal Choke Coil 66UH Min Toroidal Choke Coil 66UH Min Toroidal Choke Coil

Large Image :  66UH Min Toroidal Choke Coil

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: T12-7-6 66UH
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

66UH Min Toroidal Choke Coil

Description
Materail: Mn、Zn Inductance: 66UH Min
DC Resistance: 120mΩ MAX Turn Ratio: 20
Voltage: 0.3V Wire Diameter: 0.4mm
High Light:

0.4mm toroidal choke coil

,

66UH Min toroidal choke coil

,

0.3V toroidal inductors and transformers

Toroidal Coil Choke Inductors

Coil Filter 10kHz Toroidal Common Mode Choke With Enameled Wire

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
1-2
66uH MIN
1KHZ 0.3V
2 DC resistance
1-2
120mΩ MAX
TH2511
3



66UH Min Toroidal Choke Coil 0

66UH Min Toroidal Choke Coil 1
