Core: | Permalloy | Primary Input: | 3A |
---|---|---|---|
Output Power: | 32MW Min | Voltage: | 74VAC |
Coil Structure: | Toroidal | Usage: | Protection, Measurement |
Highlight: | 20mm toroidal transformer core,74V AC toroidal transformer core,Measurement permalloy transformer core |

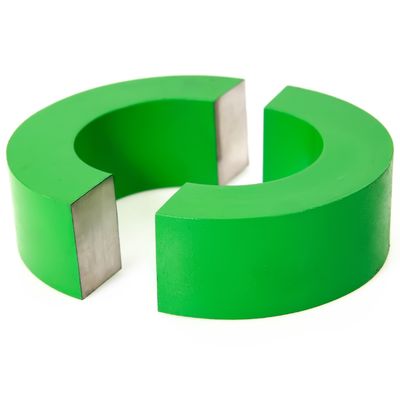

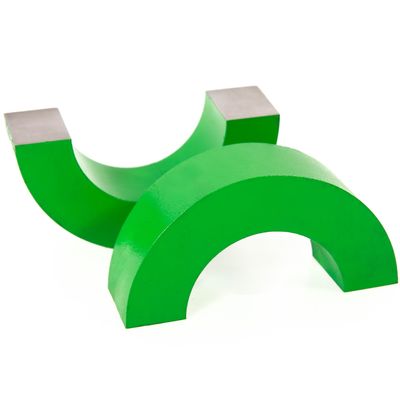

1j85 Permalloy Cores
The permalloy cores can be customized according to the user's size and performance requirements, adopting the crafts such as coiling, laminating, rivet stacking, self fastening and rubber molding. This kind of iron cores has excellent magnetic performances of super high initial permeability and high permeability, super low coercivity and low saturation magnetic induction.
Application:
They are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.
Parameters
Size(mm) | Input current (A) | Output Power(mW) |
55*65*5 | 10 | 13mW min |
55*75*10 | 5 | 38mW min |
55*75*12 | 5 | 45mW min |
48*68*15 | 5 | 50mW min |
55*75*20 | 3 | 45mW min |
SIZE | Input Current | Turns ratio | Workload | Voltage | Output Power |
55*65*5mm | 10A | 900T | 1K | 3.7V | 13mW |
55*75*10mm | 5A | 400T | 400Ω | 3.9V | 38mW |
54*78*12mm | 5A | 500T | 1K | 7V | 49mW |
67*47*15mm | 5A | 400T | 750Ω | 6V | 48mW |
55*75*20mm | 3A | 250T | 500Ω | 4.3V | 36mW |
95*75*20mm | 3A 5A | 250T | 400Ω 300Ω | 3.4V 4.5V | 28mW 67mW |
85*55*25mm | 3A 5A | 250T | 600Ω 500Ω | 5.4V 7.6V | 48mW 115mW |
88*67*10mm | 5A | 400T | 500Ω | 4.5V | 40mW |
72*47*27mm | 3A 5A | 250T | 600Ω 500Ω | 5.6V 7.7V | 52mW 118mW |
63*50*12mm | 5A | 400T | 300Ω | 2.9V | 28mW |
58*42*8mm | 5A | 400T | 300Ω | 2.7V | 24mW |
58*45*20mm | 5A | 400T | 300Ω | 5.3V | 46mW |
50*35*15mm | 5A | 400T | 400Ω | 3.7V | 34mW |
48*38*10mm | 5A | 900T | 1K | 4.7V | 22mW |
43*33*6mm | 5A | 900T | 600Ω | 2.6V | 11mW |
40*25*15mm | 5A | 400T | 500Ω | 5V | 50mW |
43*33*9mm | 5A | 900T | 1K | 4.5V | 20mW |
