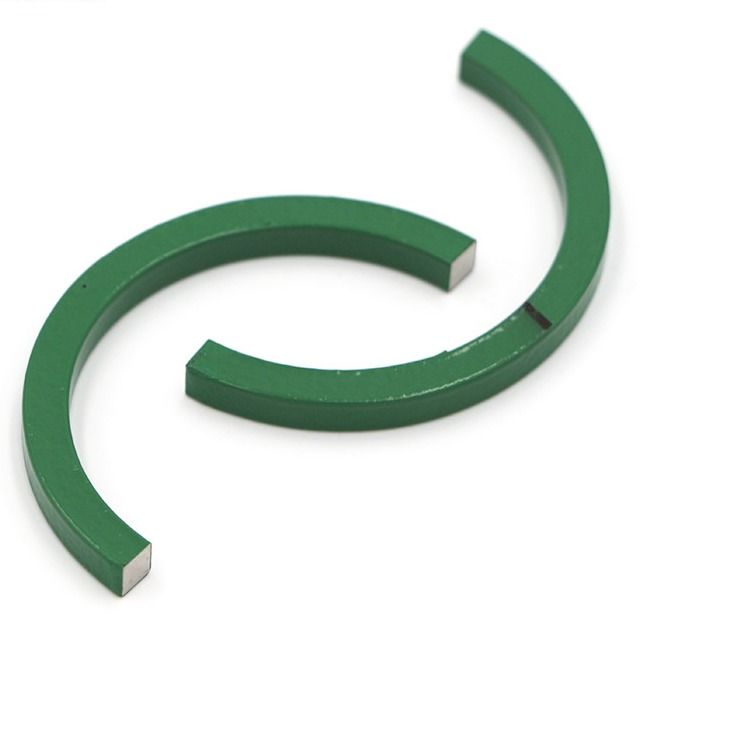

Nickel Alloy Magnetic Permalloy Core Toroidal Wide Range

Nickel Alloy Magnetic Permalloy Core Toroidal Wide Range
Nickel Alloy Magnetic Permalloy Core Toroidal Wide Range

Large Image :  Nickel Alloy Magnetic Permalloy Core Toroidal Wide Range

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE
Model Number: 5*5
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month

Nickel Alloy Magnetic Permalloy Core Toroidal Wide Range

Description
Material: Permalloy Name: Iron-nickel Alloy
Usage: Current Transformer
High Light:

10A nickel alloy Permalloy Core

,

magnetic Permalloy Core

,

magnetic permalloy toroidal core

Iron-Nickel Alloy With A Wide Range Of Nickel Content


Permalloy refers to an iron-nickel alloy with a wide range of nickel content, ranging from 35% to 90%. The biggest feature of Permalloy is its high magnetic permeability in weak magnetic fields. Their saturation magnetic induction intensity is generally between 0.6-1.0T.


Parameters

Size(mm) Input current (A) Output Power(mW)
55*65*5 10 13mW min
55*75*10 5 38mW min
55*75*12 5 45mW min
48*68*15 5 50mW min
55*75*20 3 45mW min


parameter:

SIZE Input Current Turns ratio Workload Voltage Output Power
55*65*5mm 10A 900T 1K 3.7V 13mW
55*75*10mm 5A 400T 400Ω 3.9V 38mW
54*78*12mm 5A 500T 1K 7V 49mW
67*47*15mm 5A 400T 750Ω 6V 48mW
55*75*20mm 3A 250T 500Ω 4.3V 36mW
95*75*20mm 3A 5A 250T 400Ω 300Ω 3.4V 4.5V 28mW 67mW
85*55*25mm 3A 5A 250T 600Ω 500Ω 5.4V 7.6V 48mW 115mW
88*67*10mm 5A 400T 500Ω 4.5V 40mW
72*47*27mm 3A 5A 250T 600Ω 500Ω 5.6V 7.7V 52mW 118mW
63*50*12mm 5A 400T 300Ω 2.9V 28mW
58*42*8mm 5A 400T 300Ω 2.7V 24mW
58*45*20mm 5A 400T 300Ω 5.3V 46mW
50*35*15mm 5A 400T 400Ω 3.7V 34mW
48*38*10mm 5A 900T 1K 4.7V 22mW
43*33*6mm 5A 900T 600Ω 2.6V 11mW
40*25*15mm 5A 400T 500Ω 5V 50mW
43*33*9mm 5A 900T 1K 4.5V 20mW

Nickel Alloy Magnetic Permalloy Core Toroidal Wide Range 0
