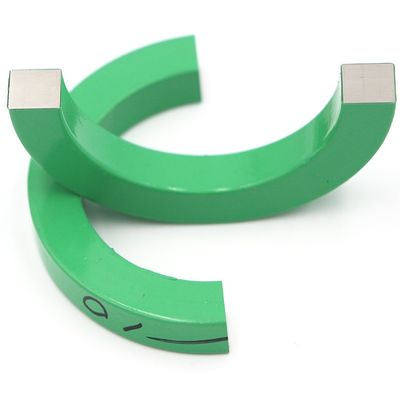

1j85 Permalloy Core 20mm Toroidal Current Transformer High Magnetic Permeability

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

1j85 Permalloy Core 20mm Toroidal Current Transformer High Magnetic Permeability

1j85 Permalloy Core 20mm Toroidal Current Transformer High Magnetic Permeability
1j85 Permalloy Core 20mm Toroidal Current Transformer High Magnetic Permeability

Large Image :  1j85 Permalloy Core 20mm Toroidal Current Transformer High Magnetic Permeability

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE UL
Model Number: 10*20mm
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month

1j85 Permalloy Core 20mm Toroidal Current Transformer High Magnetic Permeability

Description
Material: 1j85 Permalloy Coil Structure: Toroidal
Usage: Current Transformer
High Light:

1j85 current Permalloy Core

,

10mm Toroidal Permalloy Core

,

20mm toroidal current transformer

1j85 Permalloy Core For Current Transformer

PERMALLOY strip is an alloy material with high magnetic permeability and high permeability. Its characteristics are: 45%-81% NI medium nickel and high nickel soft magnetic alloy: Bs=0.7-1.6T. The magnetic permeability ranges from 50,000 to 50,000. 500,000, using different
The production process and heat treatment system can obtain ordinary loop-high initial permeability, rectangular loop-high residual magnetic induction, and flat loop-low residual magnetic induction. High magnetic induction, high magnetic permeability and low loss to reduce the weight and volume of magnetic components. Mainly used for metal shields





Application:

They are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.



Parameters

Size(mm) Input current (A) Output Power(mW)
55*65*5 10 13mW min
55*75*10 5 38mW min
55*75*12 5 45mW min
48*68*15 5 50mW min
55*75*20 3 45mW min



parameter:

SIZE Input Current Turns ratio Workload Voltage Output Power
55*65*5mm 10A 900T 1K 3.7V 13mW
55*75*10mm 5A 400T 400Ω 3.9V 38mW
54*78*12mm 5A 500T 1K 7V 49mW
67*47*15mm 5A 400T 750Ω 6V 48mW
55*75*20mm 3A 250T 500Ω 4.3V 36mW
95*75*20mm 3A 5A 250T 400Ω 300Ω 3.4V 4.5V 28mW 67mW
85*55*25mm 3A 5A 250T 600Ω 500Ω 5.4V 7.6V 48mW 115mW
88*67*10mm 5A 400T 500Ω 4.5V 40mW
72*47*27mm 3A 5A 250T 600Ω 500Ω 5.6V 7.7V 52mW 118mW
63*50*12mm 5A 400T 300Ω 2.9V 28mW
58*42*8mm 5A 400T 300Ω 2.7V 24mW
58*45*20mm 5A 400T 300Ω 5.3V 46mW
50*35*15mm 5A 400T 400Ω 3.7V 34mW
48*38*10mm 5A 900T 1K 4.7V 22mW
43*33*6mm 5A 900T 600Ω 2.6V 11mW
40*25*15mm 5A 400T 500Ω 5V 50mW
43*33*9mm 5A 900T 1K 4.5V 20mW

1j85 Permalloy Core 20mm Toroidal Current Transformer High Magnetic Permeability 0
