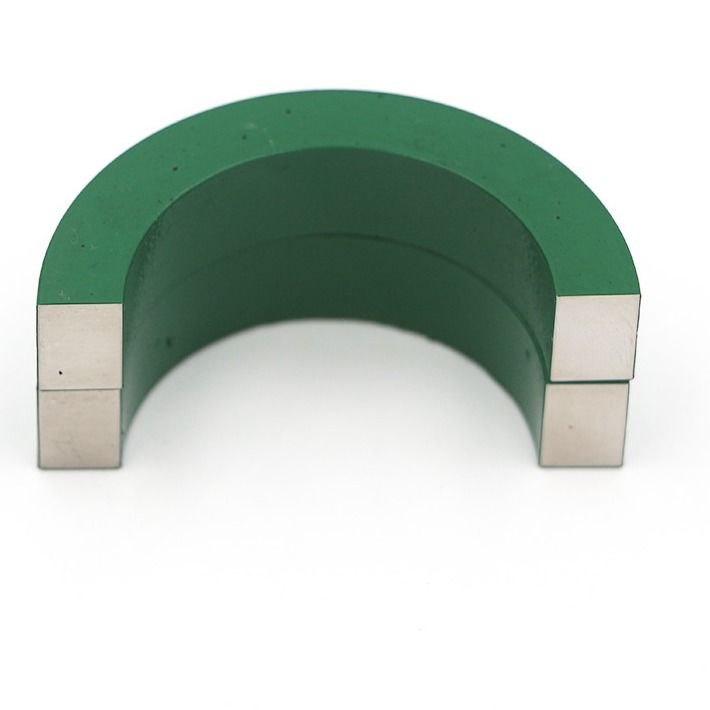

Iron Nickel Permalloy Core 5mm Measurement Magnetic Powder Cores

Iron Nickel Permalloy Core 5mm Measurement Magnetic Powder Cores
Iron Nickel Permalloy Core 5mm Measurement Magnetic Powder Cores

Large Image :  Iron Nickel Permalloy Core 5mm Measurement Magnetic Powder Cores

Product Details:
Place of Origin: hefei city
Brand Name: HEMEI
Certification: CE UL
Model Number: 5*5mm
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month

Iron Nickel Permalloy Core 5mm Measurement Magnetic Powder Cores

Description
Material: Permalloy Structure: Toroidal Core
Application: Protection, Measurement Name: Permalloy Core
High Light:

5mm Permalloy Core

,

Iron Nickel Permalloy Core

,

38mW min magnetic powder cores

Permalloy Core Iron-Nickel Alloy For Current Transformer


permalloy strip is an alloy material with high magnetic permeability and high permeability. Its characteristics are: 45%-81% NI medium nickel and high nickel soft magnetic alloy: Bs=0.7-1.6T. The magnetic permeability ranges from 50,000 to 50,000. 500,000, using different
The production process and heat treatment system can obtain ordinary loop-high initial permeability, rectangular loop-high residual magnetic induction, and flat loop-low residual magnetic induction. High magnetic induction, high magnetic permeability and low loss to reduce the weight and volume of magnetic components. Mainly used for metal shields

Parameters

Size(mm) Input current (A) Output Power(mW)
55*65*5 10 13mW min
55*75*10 5 38mW min
55*75*12 5 45mW min
48*68*15 5 50mW min
55*75*20 3 45mW min



parameter:

SIZE Input Current Turns ratio Workload Voltage Output Power
55*65*5mm 10A 900T 1K 3.7V 13mW
55*75*10mm 5A 400T 400Ω 3.9V 38mW
54*78*12mm 5A 500T 1K 7V 49mW
67*47*15mm 5A 400T 750Ω 6V 48mW
55*75*20mm 3A 250T 500Ω 4.3V 36mW
95*75*20mm 3A 5A 250T 400Ω 300Ω 3.4V 4.5V 28mW 67mW
85*55*25mm 3A 5A 250T 600Ω 500Ω 5.4V 7.6V 48mW 115mW
88*67*10mm 5A 400T 500Ω 4.5V 40mW
72*47*27mm 3A 5A 250T 600Ω 500Ω 5.6V 7.7V 52mW 118mW
63*50*12mm 5A 400T 300Ω 2.9V 28mW
58*42*8mm 5A 400T 300Ω 2.7V 24mW
58*45*20mm 5A 400T 300Ω 5.3V 46mW
50*35*15mm 5A 400T 400Ω 3.7V 34mW
48*38*10mm 5A 900T 1K 4.7V 22mW
43*33*6mm 5A 900T 600Ω 2.6V 11mW
40*25*15mm 5A 400T 500Ω 5V 50mW
43*33*9mm 5A 900T 1K 4.5V 20mW



Iron Nickel Permalloy Core 5mm Measurement Magnetic Powder Cores 0
