Product Details:
|
Material: | 1j85 Permalloy | Feature: | High Permeability |
---|---|---|---|
Coil Structure: | Toroidal Core | Usage: | Current Transformer |
High Light: | 38mW min silicon steel transformer core,1j85 silicon steel transformer core,1j85 permalloy toroidal core |

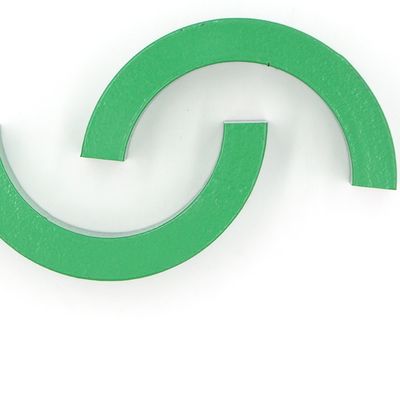

1j85 Permalloy Core For Current Transformer
High magnetic permeability alloy (permalloy)
High-permeability alloys refer to iron-nickel alloys with high initial permeability and high permeability, and most of the product names are called "permalloy". In addition to high magnetic permeability, permalloy has relatively low loss, especially good environmental adaptability and stable performance. Although it is expensive, it is still used in power supplies with stricter conditions.
Application:
They are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.
Parameters
Size(mm) | Input current (A) | Output Power(mW) |
55*65*5 | 10 | 13mW min |
55*75*10 | 5 | 38mW min |
55*75*12 | 5 | 45mW min |
48*68*15 | 5 | 50mW min |
55*75*20 | 3 | 45mW min |
parameter:
SIZE | Input Current | Turns ratio | Workload | Voltage | Output Power |
55*65*5mm | 10A | 900T | 1K | 3.7V | 13mW |
55*75*10mm | 5A | 400T | 400Ω | 3.9V | 38mW |
54*78*12mm | 5A | 500T | 1K | 7V | 49mW |
67*47*15mm | 5A | 400T | 750Ω | 6V | 48mW |
55*75*20mm | 3A | 250T | 500Ω | 4.3V | 36mW |
95*75*20mm | 3A 5A | 250T | 400Ω 300Ω | 3.4V 4.5V | 28mW 67mW |
85*55*25mm | 3A 5A | 250T | 600Ω 500Ω | 5.4V 7.6V | 48mW 115mW |
88*67*10mm | 5A | 400T | 500Ω | 4.5V | 40mW |
72*47*27mm | 3A 5A | 250T | 600Ω 500Ω | 5.6V 7.7V | 52mW 118mW |
63*50*12mm | 5A | 400T | 300Ω | 2.9V | 28mW |
58*42*8mm | 5A | 400T | 300Ω | 2.7V | 24mW |
58*45*20mm | 5A | 400T | 300Ω | 5.3V | 46mW |
50*35*15mm | 5A | 400T | 400Ω | 3.7V | 34mW |
48*38*10mm | 5A | 900T | 1K | 4.7V | 22mW |
43*33*6mm | 5A | 900T | 600Ω | 2.6V | 11mW |
40*25*15mm | 5A | 400T | 500Ω | 5V | 50mW |
43*33*9mm | 5A | 900T | 1K | 4.5V | 20mW |
