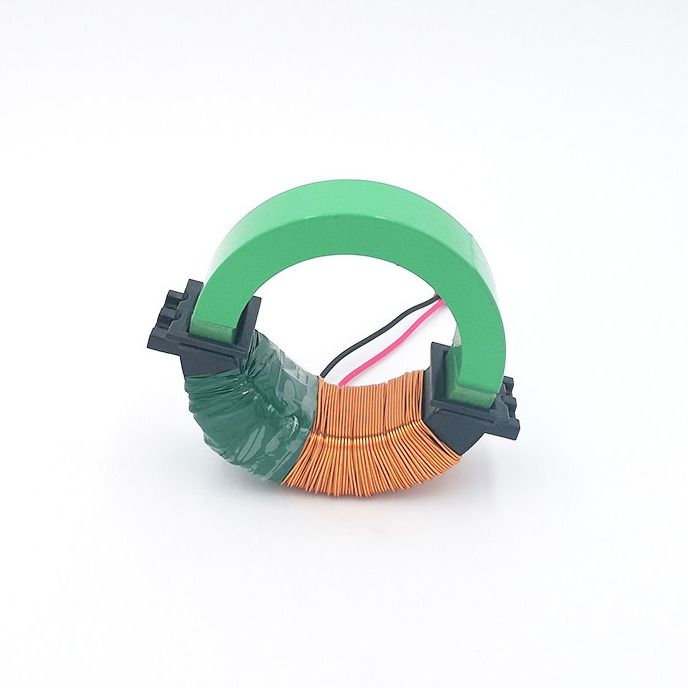

CT Permalloy Transformer Core Toroidal 20mm Electromagnetic

CT Permalloy Transformer Core Toroidal 20mm Electromagnetic
CT Permalloy Transformer Core Toroidal 20mm Electromagnetic

Large Image :  CT Permalloy Transformer Core Toroidal 20mm Electromagnetic

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE
Model Number: 10*20mm
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month

CT Permalloy Transformer Core Toroidal 20mm Electromagnetic

Description
Material: Permalloy Coil Structure: Toroidal Core
Usage: CT Application: Current Transformer
High Light:

CT permalloy transformer core

,

20mm permalloy transformer core

,

20mm permalloy toroidal core

Permalloy Power Coil for Current Transformer



The principle of current transformer is based on the principle of electromagnetic induction. The current transformer is composed of a closed core and windings. Its primary winding has a few turns, which are stringed in the line where the current needs to be measured. Therefore, it often has all the current flowing through the line. The secondary winding has a large number of turns, which is connected in series to the measuring instrument and the protection circuit. When the current transformer is working, its secondary side loop is always closed, so the impedance of the series coil of the measuring instrument and the protection circuit is very small, and the working state of the current transformer is close to short circuit. The current transformer is used to convert a large current on the primary side into a small current on the secondary side, and the secondary side cannot be opened.





Parameters

Size(mm) Input current (A) Output Power(mW)
55*65*5 10 13mW min
55*75*10 5 38mW min
55*75*12 5 45mW min
48*68*15 5 50mW min
55*75*20 3 45mW min





parameter:

SIZE Input Current Turns ratio Workload Voltage Output Power
55*65*5mm 10A 900T 1K 3.7V 13mW
55*75*10mm 5A 400T 400Ω 3.9V 38mW
54*78*12mm 5A 500T 1K 7V 49mW
67*47*15mm 5A 400T 750Ω 6V 48mW
55*75*20mm 3A 250T 500Ω 4.3V 36mW
95*75*20mm 3A 5A 250T 400Ω 300Ω 3.4V 4.5V 28mW 67mW
85*55*25mm 3A 5A 250T 600Ω 500Ω 5.4V 7.6V 48mW 115mW
88*67*10mm 5A 400T 500Ω 4.5V 40mW
72*47*27mm 3A 5A 250T 600Ω 500Ω 5.6V 7.7V 52mW 118mW
63*50*12mm 5A 400T 300Ω 2.9V 28mW
58*42*8mm 5A 400T 300Ω 2.7V 24mW
58*45*20mm 5A 400T 300Ω 5.3V 46mW
50*35*15mm 5A 400T 400Ω 3.7V 34mW
48*38*10mm 5A 900T 1K 4.7V 22mW
43*33*6mm 5A 900T 600Ω 2.6V 11mW
40*25*15mm 5A 400T 500Ω 5V 50mW
43*33*9mm 5A 900T 1K 4.5V 20mW
