Product Details:
|
| Material: | 1j85 Permalloy | Primary Input: | 3A |
|---|---|---|---|
| Output Power: | 32MW Min | Voltage: | 74VAC |
| Coil Structure: | Toroidal | Usage: | Current Transformer |
| High Light: | 1j85 iron powder core,55mm iron powder core,74 VAC silicon steel toroidal core |
||

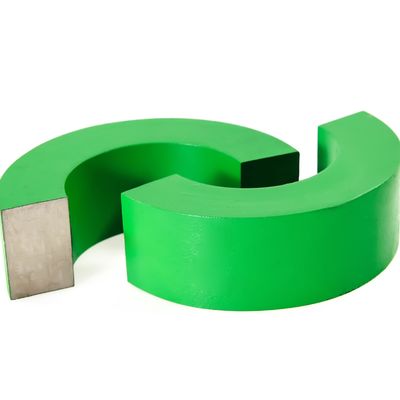

1j85 Permalloy Core For Current Transformer
Soft magnetic alloy are in weak magnetic field with high permeability and low coercive force of alloys.This kind of alloy are widely used in radio electronics, precision instruments and meters, remote control and automatic control system, the combination is mainly used for energy conversion and information processing, the two aspects of is an important material in the national economy.
Application:
They are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.
Parameters
| Size(mm) | Input current (A) | Output Power(mW) |
| 55*65*5 | 10 | 13mW min |
| 55*75*10 | 5 | 38mW min |
| 55*75*12 | 5 | 45mW min |
| 48*68*15 | 5 | 50mW min |
| 55*75*20 | 3 | 45mW min |
parameter:
| SIZE | Input Current | Turns ratio | Workload | Voltage | Output Power |
| 55*65*5mm | 10A | 900T | 1K | 3.7V | 13mW |
| 55*75*10mm | 5A | 400T | 400Ω | 3.9V | 38mW |
| 54*78*12mm | 5A | 500T | 1K | 7V | 49mW |
| 67*47*15mm | 5A | 400T | 750Ω | 6V | 48mW |
| 55*75*20mm | 3A | 250T | 500Ω | 4.3V | 36mW |
| 95*75*20mm | 3A 5A | 250T | 400Ω 300Ω | 3.4V 4.5V | 28mW 67mW |
| 85*55*25mm | 3A 5A | 250T | 600Ω 500Ω | 5.4V 7.6V | 48mW 115mW |
| 88*67*10mm | 5A | 400T | 500Ω | 4.5V | 40mW |
| 72*47*27mm | 3A 5A | 250T | 600Ω 500Ω | 5.6V 7.7V | 52mW 118mW |
| 63*50*12mm | 5A | 400T | 300Ω | 2.9V | 28mW |
| 58*42*8mm | 5A | 400T | 300Ω | 2.7V | 24mW |
| 58*45*20mm | 5A | 400T | 300Ω | 5.3V | 46mW |
| 50*35*15mm | 5A | 400T | 400Ω | 3.7V | 34mW |
| 48*38*10mm | 5A | 900T | 1K | 4.7V | 22mW |
| 43*33*6mm | 5A | 900T | 600Ω | 2.6V | 11mW |
| 40*25*15mm | 5A | 400T | 500Ω | 5V | 50mW |
| 43*33*9mm | 5A | 900T | 1K | 4.5V | 20mW |
