Product Details:
|
| Material: | Permalloy | Primary Input: | 10A |
|---|---|---|---|
| Output Power: | 13MW Min | Voltage: | 3.7VAC |
| Coil Structure: | Toroidal | Usage: | Protection, Measurement |
| High Light: | 5mm soft magnetic core,3.7VAC soft magnetic core,Permalloy iron nickel core |
||

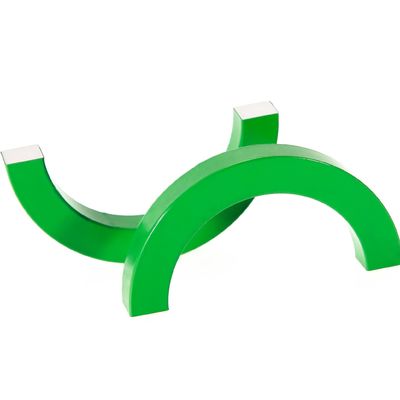

High Permeability Permalloy Core Iron-Nickel Alloy For Current Transformer
Mechanical Properties
Soft Annealed
Tensile: Min 570 MPa
Yield: Min 160 MPa
Elongation: Min 45%
Physical Properties
Density: 8.7 g/cm3
Melting Point: 1400 °C
Curie Temp: 400 °C
Magnetic Properties
Saturation Induction: 0.70
Maximum Permeability: 110,000-260,000
Coercive Force - A/m: 0.7-2.4
Permeability μ 0.08>=: 30,000-55,000
Application:
They are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.
Parameters
| Size(mm) | Input current (A) | Output Power(mW) |
| 55*65*5 | 10 | 13mW min |
| 55*75*10 | 5 | 38mW min |
| 55*75*12 | 5 | 45mW min |
| 48*68*15 | 5 | 50mW min |
| 55*75*20 | 3 | 45mW min |
parameter:
| SIZE | Input Current | Turns ratio | Workload | Voltage | Output Power |
| 55*65*5mm | 10A | 900T | 1K | 3.7V | 13mW |
| 55*75*10mm | 5A | 400T | 400Ω | 3.9V | 38mW |
| 54*78*12mm | 5A | 500T | 1K | 7V | 49mW |
| 67*47*15mm | 5A | 400T | 750Ω | 6V | 48mW |
| 55*75*20mm | 3A | 250T | 500Ω | 4.3V | 36mW |
| 95*75*20mm | 3A 5A | 250T | 400Ω 300Ω | 3.4V 4.5V | 28mW 67mW |
| 85*55*25mm | 3A 5A | 250T | 600Ω 500Ω | 5.4V 7.6V | 48mW 115mW |
| 88*67*10mm | 5A | 400T | 500Ω | 4.5V | 40mW |
| 72*47*27mm | 3A 5A | 250T | 600Ω 500Ω | 5.6V 7.7V | 52mW 118mW |
| 63*50*12mm | 5A | 400T | 300Ω | 2.9V | 28mW |
| 58*42*8mm | 5A | 400T | 300Ω | 2.7V | 24mW |
| 58*45*20mm | 5A | 400T | 300Ω | 5.3V | 46mW |
| 50*35*15mm | 5A | 400T | 400Ω | 3.7V | 34mW |
| 48*38*10mm | 5A | 900T | 1K | 4.7V | 22mW |
| 43*33*6mm | 5A | 900T | 600Ω | 2.6V | 11mW |
| 40*25*15mm | 5A | 400T | 500Ω | 5V | 50mW |
| 43*33*9mm | 5A | 900T | 1K | 4.5V | 20mW |
