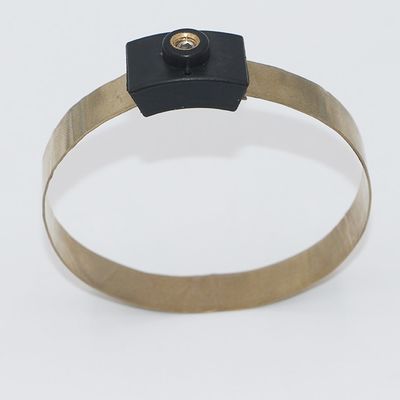

Passive Wireless Temperature Sensors Monitoring 14mm 433MHz

Passive Wireless Temperature Sensors Monitoring 14mm 433MHz
Passive Wireless Temperature Sensors Monitoring 14mm 433MHz

Large Image :  Passive Wireless Temperature Sensors Monitoring 14mm 433MHz

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: 50*14mm
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Passive Wireless Temperature Sensors Monitoring 14mm 433MHz

Description
Measurement Range: -25~+125℃ Accuracy: ±0.5℃
Installation Type: Bundled, Alloy Strap, Belt Frequency: 433.925MHz
Accuracy: Plus Or Minus 1 Centigrade Degree Communication Method: Lora
Wireless Frequency: 433MHz/470MHz Wireless Transmission Distance: <300m
Working Power Supply Induction Power: ≤5A Start Work Sensing Type: Thermocouple
High Light:

14mm Wireless Temperature Sensors

,

Passive Wireless Temperature Sensors

,

433MHz wireless temperature monitoring

Online Temperature Measurement System for electric contacts is composed of wireless temperature sensor , transceiver and display unit.Temperature sensors are directly installed at the heating joint, sending temperature data to terminals by wireless RFID technology.


Simple and flexible
1. The product is easy to install and use. There are various types of temperature sensors suitable for different occasions. The installation of the sensor will not affect or reduce the safety performance of the equipment.
2. Our company has developed products for various applications and a variety of networking solutions to facilitate the needs of different customers.
3. According to the specific needs of customers, the company can design corresponding programs specifically and specifically.
Effectiveness


1. It solves the labor intensity of regular on-site inspections of the staff under the traditional method and the high cost caused by the increase of staff.
problem.
2. It solves the problem of inaccurate temperature measurement in traditional temperature measurement methods and large interference factors caused by man-made and environmental factors.
3. Eliminate the occurrence of equipment failure due to equipment heating, ensure the safe, reliable and continuous operation of the equipment, and improve
Improve the economic benefits of the enterprise.
4. The system can detect and predict equipment failures in time, eliminate equipment failures in advance, and reduce equipment damage.
Bad, reducing the maintenance cost of the enterprise.


Power industry applications
Electrical equipment in operation usually works at high voltage and high current. Certain defects in the equipment will cause abnormal temperature rise of equipment components. Excessive temperature may cause combustion, explosion and even equipment damage or quality accidents. Shanghai Nanyue Electric's wireless temperature measurement can monitor the frequent occurrence of electrical equipment such as switch cabinets in real time, and can effectively control the occurrence of electrical accidents in a timely and effective manner.
①, high-voltage switchgear moving contacts, static contacts, cable contacts and other temperature online monitoring;
②, low-voltage switchgear contacts, cable joints and other temperature online monitoring;
③. Capacitors; online temperature monitoring of circuit breakers, isolating switches, etc.;
④. On-line monitoring of the temperature of the cable joints of the motor outlet box;
⑤, on-line monitoring of the temperature of the cable tunnel cable surface, cable joints, cable interlayer, etc.;
⑥. On-line temperature monitoring of electrical nodes in substations or outdoor important circuits;
⑦, on-line monitoring of the electrical node temperature in the transformer;
⑧, online monitoring of the electrical node temperature in the rectifier cabinet;



inner diameter Input Current Turns ratio Workload Voltage Output Power
50*14mm 2A 4000T 3.3K 1.7V 0.8mW
50*14mm 5A 4000T 3.3K 3.2V 3mW

Passive Wireless Temperature Sensors Monitoring 14mm 433MHz 0Passive Wireless Temperature Sensors Monitoring 14mm 433MHz 1Passive Wireless Temperature Sensors Monitoring 14mm 433MHz 2
