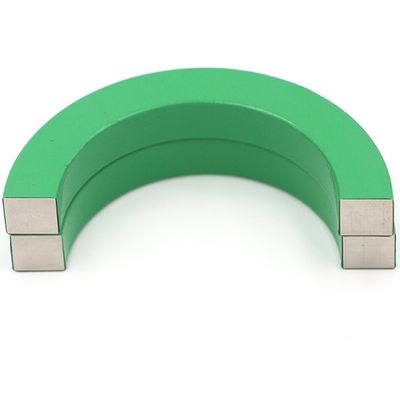

Iron Nickel Alloy Permalloy Core 5A Current Transformer Core 10mm

Iron Nickel Alloy Permalloy Core 5A Current Transformer Core 10mm
Iron Nickel Alloy Permalloy Core 5A Current Transformer Core 10mm

Large Image :  Iron Nickel Alloy Permalloy Core 5A Current Transformer Core 10mm

Product Details:
Place of Origin: HEFEI
Brand Name: HEMEI
Certification: CE
Model Number: 10*10MM
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/month

Iron Nickel Alloy Permalloy Core 5A Current Transformer Core 10mm

Description
Name: Permalloy Core Usage: Current Transformer
High Light:

3.9V 10MM Permalloy Core

,

iron nickel alloy Permalloy Core

,

38mW min current transformer core

permalloy core



Permalloy refers to an iron-nickel alloy with a wide range of nickel content, ranging from 35% to 90%. The biggest feature of Permalloy is its high magnetic permeability in weak magnetic fields. High sensitivity and small power transformers used in weak magnetic fields, low power magnetic amplifiers, relays, chokes, magnetic heads for magnetic recording devices, magnetic shields, various tape wound cores, cut cores, and laminated cores


Parameters

Size(mm) Input current (A) Output Power(mW)
55*65*5 10 13mW min
55*75*10 5 38mW min
55*75*12 5 45mW min
48*68*15 5 50mW min
55*75*20 3 45mW min


parameter:

SIZE Input Current Turns ratio Workload Voltage Output Power
55*65*5mm 10A 900T 1K 3.7V 13mW
55*75*10mm 5A 400T 400Ω 3.9V 38mW
54*78*12mm 5A 500T 1K 7V 49mW
67*47*15mm 5A 400T 750Ω 6V 48mW
55*75*20mm 3A 250T 500Ω 4.3V 36mW
95*75*20mm 3A 5A 250T 400Ω 300Ω 3.4V 4.5V 28mW 67mW
85*55*25mm 3A 5A 250T 600Ω 500Ω 5.4V 7.6V 48mW 115mW
88*67*10mm 5A 400T 500Ω 4.5V 40mW
72*47*27mm 3A 5A 250T 600Ω 500Ω 5.6V 7.7V 52mW 118mW
63*50*12mm 5A 400T 300Ω 2.9V 28mW
58*42*8mm 5A 400T 300Ω 2.7V 24mW
58*45*20mm 5A 400T 300Ω 5.3V 46mW
50*35*15mm 5A 400T 400Ω 3.7V 34mW
48*38*10mm 5A 900T 1K 4.7V 22mW
43*33*6mm 5A 900T 600Ω 2.6V 11mW
40*25*15mm 5A 400T 500Ω 5V 50mW
43*33*9mm 5A 900T 1K 4.5V 20mW

Iron Nickel Alloy Permalloy Core 5A Current Transformer Core 10mm 0
