Epoxy Resin Permalloy Core Split Current Transformer 2mm

Epoxy Resin Permalloy Core Split Current Transformer 2mm
Epoxy Resin Permalloy Core Split Current Transformer 2mm

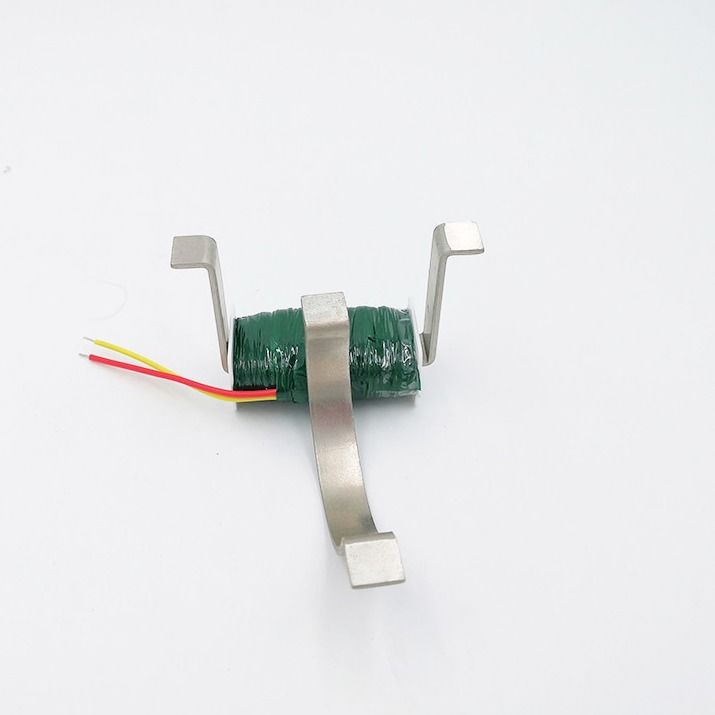

Large Image :  Epoxy Resin Permalloy Core Split Current Transformer 2mm

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: 66*18*2MM
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month

Epoxy Resin Permalloy Core Split Current Transformer 2mm

Description
Material: Permalloy Type: Current Transformer
Insulating Medium: Epoxy Resin Core: Permalloy
High Light:

Epoxy Resin permalloy core

,

Current Transformer permalloy core

,

2mm Permalloy Split Core

Permalloy Core 66*18*2MM For Current Transformer

1J85 application range application areas are:

1. Used for core lamination in DC relays, communication and electronic equipment transformers, and chokes

2. Magnetic shielding device, parts or control components



size Input Current Turns ratio Workload Voltage Output Power
66*18*2mm 10A 3500T 3.3K 6.2V 11mW
68*10*2mm 10A 4100T 3.3K 4.5V 6mW
73*10*2mm 10A 4100T 3.3K 4.5V 6mW

Epoxy Resin Permalloy Core Split Current Transformer 2mm 0
