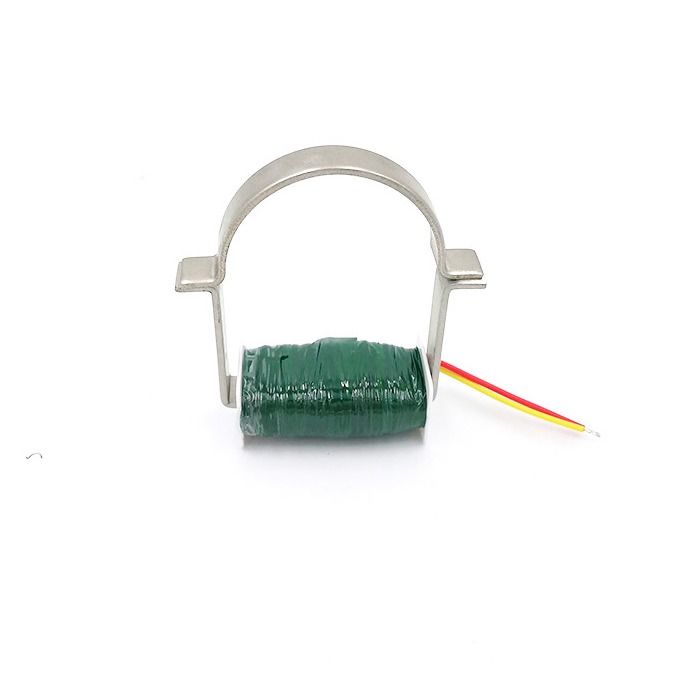

66mm Current Transformer Core UL Permalloy Cut Core

66mm Current Transformer Core UL Permalloy Cut Core
66mm Current Transformer Core UL Permalloy Cut Core

Large Image :  66mm Current Transformer Core UL Permalloy Cut Core

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: 66*18*2MM
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month

66mm Current Transformer Core UL Permalloy Cut Core

Description
Core Material: Permalloy Application: Current Transformer
Process: Stamping Size: As Drawing,According To Customer's Requirement,Customized
Type: Zinc Alloy,Iron Color: Printing / Enamel / Laser / Anodize / Plating /injection Etc.,custom Color
Technique: Stamp Service: Customized OEM,OEM Service
Logo: Customized Logo
High Light:

66mm Current Transformer Core

,

UL Current Transformer Core

,

UL Permalloy Cut Core

Permalloy core current transformer

It is a very widely used soft magnetic alloy. Through appropriate technology, magnetic properties can be effectively controlled, such as initial permeability exceeding 105, maximum permeability exceeding 106, coercivity as low as 2‰ Oersted, rectangular coefficient close to 1 or close to 0, Permalloy with a face-centered cubic crystal structure has good plasticity and can be processed into 1μm ultra-thin ribbons and various forms of use.

size Input Current Turns ratio Workload Voltage Output Power
66*18*2mm 10A 3500T 3.3K 6.2V 11mW
68*10*2mm 10A 4100T 3.3K 4.5V 6mW
73*10*2mm 10A 4100T 3.3K 4.5V 6mW
