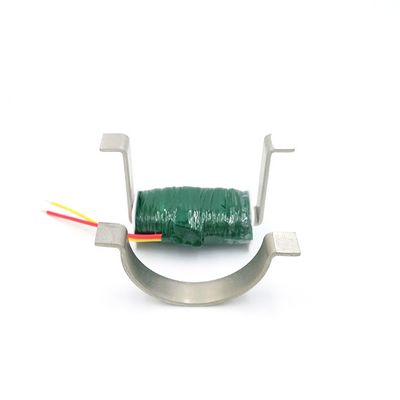

Name: HEMEI 2mm Mumetal Permalloy Punch Core UL Current Transformer
Brand: HEMEI
SKU: 66*18*2MM
Rating: 4.8 (125 reviews)

HEMEI 2mm Mumetal Permalloy Punch Core UL Current Transformer

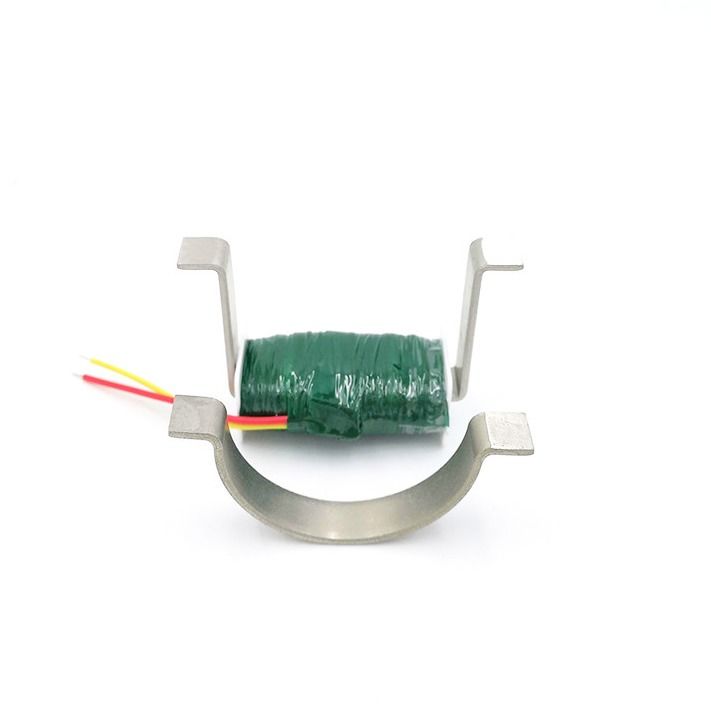

Large Image : HEMEI 2mm Mumetal Permalloy Punch Core UL Current Transformer

Product Details:

Place of Origin:	China
Brand Name:	HEMEI
Certification:	CE/UL
Model Number:	66182MM

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	negotiable
Packaging Details:	Standard Carton
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000PCS/Month

Contact Now

HEMEI 2mm Mumetal Permalloy Punch Core UL Current Transformer

Description

Material:

Permalloy

Type:

Current Transformer

High Light:

2mm Mumetal Permalloy

UL Mumetal Permalloy

HEMEI permalloy punch core

Permalloy Punch Core

Density: 8.75 g/cm3

Melting point: 1395-1425°C

1J85 annealed state, the mechanical properties of the alloy at room temperature:

Tensile strength σb (Mpa): ≥560

Elongation rate A5 %: ≥35

Hardness Hv: ≤205

size	Input Current	Turns ratio	Workload	Voltage	Output Power
66182mm	10A	3500T	3.3K	6.2V	11mW
68102mm	10A	4100T	3.3K	4.5V	6mW
73102mm	10A	4100T	3.3K	4.5V	6mW

HEMEI 2mm Mumetal Permalloy Punch Core UL Current Transformer 0

Tag:

Epoxy Resin permalloy core,

10A soft iron core transformer,

1j85 Mumetal Permalloy

Contact Details

Hefei Hemei Electronics Technology Co., Ltd

Contact Person: Vivian

Tel: 13365601522
