Product Details:
|
| Material: | Permalloy | Type: | Current Transformer |
|---|---|---|---|
| Application: | Electronic, Instrument, Position Sensor, Audio, Lighting | Feature: | High Permeability |
| Insulating Medium: | Epoxy Resin | Primary Input: | 10A |
| Output Power: | 6.1MW Min | ||
| High Light: | Electronic soft magnetic cores,6.1MW Min soft magnetic cores,10A soft iron core transformer |
||

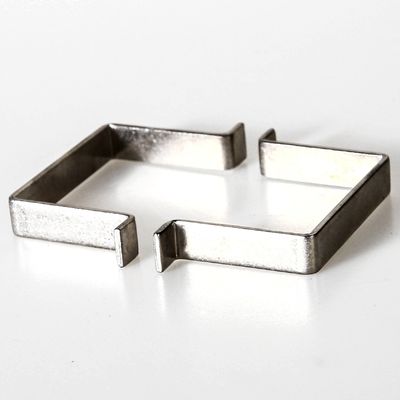

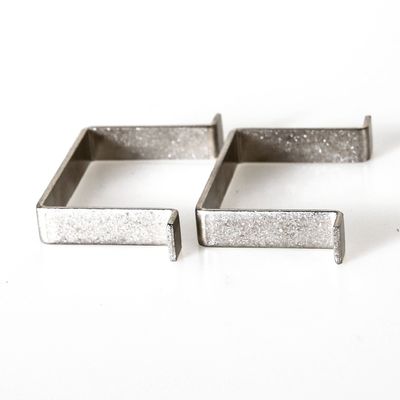

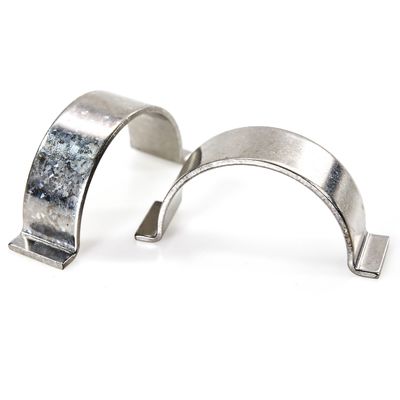

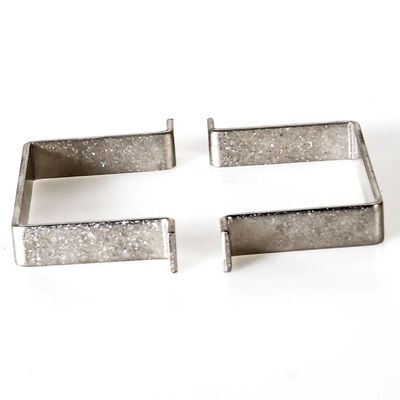

Soft Magnetic Alloy Permalloy Core
Mu 85 is a soft magnetic nickel-iron alloy with about 80 % nickel, 4.8 - 5.2 % molybdenum, a saturation induction of approx. 0.7 T, the highest technically obtainable permeability, and a very low coercive force.
Typical applications are toroidal tape-wound cores, laminations, shieldings, electromagnetic relays.
current transformer are general applied in electronic energy meter, power transducer, precision power
meter and other power and energy monitoring devices ,over current protection circuit of motor and other
electrical appliances .
| size | Input Current | Turns ratio | Workload | Voltage | Output Power |
| 66*18*2mm | 10A | 3500T | 3.3K | 6.2V | 11mW |
| 68*10*2mm | 10A | 4100T | 3.3K | 4.5V | 6mW |
| 73*10*2mm | 10A | 4100T | 3.3K | 4.5V | 6mW |
