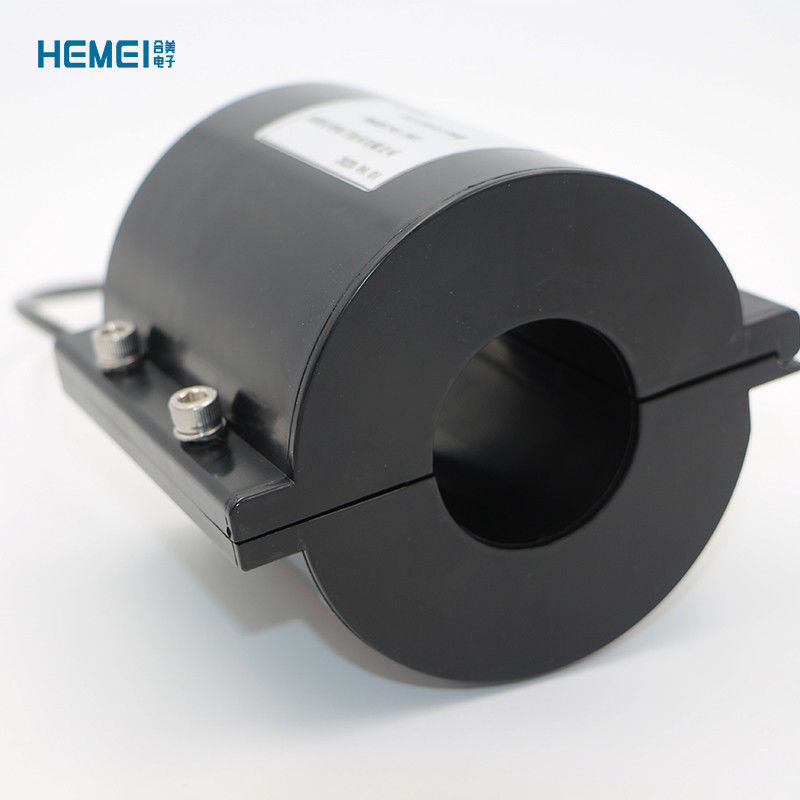

Permalloy Current Transformer Power Supply Line Transmission CT 5VA

Permalloy Current Transformer Power Supply Line Transmission CT 5VA
Permalloy Current Transformer Power Supply Line Transmission CT 5VA

Large Image :  Permalloy Current Transformer Power Supply Line Transmission CT 5VA

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL/ROHS
Model Number: HMKCT-45HW
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Permalloy Current Transformer Power Supply Line Transmission CT 5VA

Description
Name: Power Supply Device/CT Power Extraction Device Core: Permalloy
Primary Input: 0A-2000A Output Current: 5VA
Application: Transmission Line Accuracy: 0.1%
High Light:

400A-1000A Current Transformer Power Supply

,

Permalloy Current Transformer Power Supply

,

HEMEI Transmission line current transformer

CT Power Supply Current Transformer For Transmission Line Online Monitoring And Monitoring Equipment



Feature:

1. Reasonably select the induction power supply and its energy storage components according to the conventional operating value of the wire current, power curve and electric power;

2. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon;

3. The principle of the induction power supply module is completely different from that of the conventional power supply, and it must not be connected to other power interfaces;



Parameter:

Model Input current(A) Output current accuracy
HMKCT-45HW 300A-2000A 5A/1A 0.5
HMKCT-55HW 400A-1000A 5A/1A 0.5




diagram

Permalloy Current Transformer Power Supply Line Transmission CT 5VA 0

Permalloy Current Transformer Power Supply Line Transmission CT 5VA 1Permalloy Current Transformer Power Supply Line Transmission CT 5VA 2
