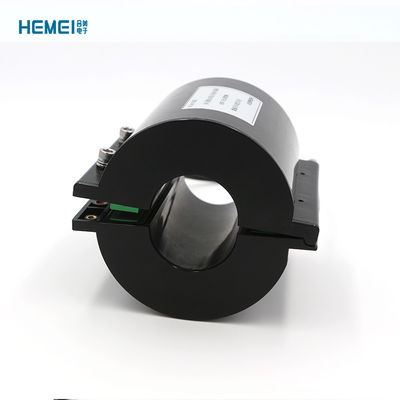

CT Electronic Current Transformer Output 5VA Silicon Steel High Voltage

CT Electronic Current Transformer Output 5VA Silicon Steel High Voltage
CT Electronic Current Transformer Output 5VA Silicon Steel High Voltage

Large Image :  CT Electronic Current Transformer Output 5VA Silicon Steel High Voltage

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL/ROHS
Model Number: HMKCT-45HW
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

CT Electronic Current Transformer Output 5VA Silicon Steel High Voltage

Description
Name: CT Power Extraction Device Core: Silicon Steel
Primary Input: 0A-2000A Output Current: 5VA
Application: High-voltage Environments Accuracy: 0.1%
High Light:

5VA electronic current transformer

,

5A CT electronic current transformer

,

10KV 500KV current of transformer

CT Power Supply Current Transformer For Transmission Line Online Monitoring And Monitoring Equipment

HEMEI is a high-tech enterprise specializing in the research and development, production and sales of CT power taking devices (CT power taking devices) in the power system high-voltage power taking industry. Customers provide a complete solution for obtaining electricity from 10KV-500KV high-voltage environments to help customers obtain electricity in extremely special and demanding high-voltage environments.

Feature:

1. Reasonably select the induction power supply and its energy storage components according to the conventional operating value of the wire current, power curve and electric power;

2. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon;

3. The principle of the induction power supply module is completely different from that of the conventional power supply, and it must not be connected to other power interfaces;



Parameter:

Model Input current(A) Output current accuracy
HMKCT-45HW 300A-2000A 5A/1A 0.5
HMKCT-55HW 400A-1000A 5A/1A 0.5




diagram

CT Electronic Current Transformer Output 5VA Silicon Steel High Voltage 0

CT Electronic Current Transformer Output 5VA Silicon Steel High Voltage 1CT Electronic Current Transformer Output 5VA Silicon Steel High Voltage 2
