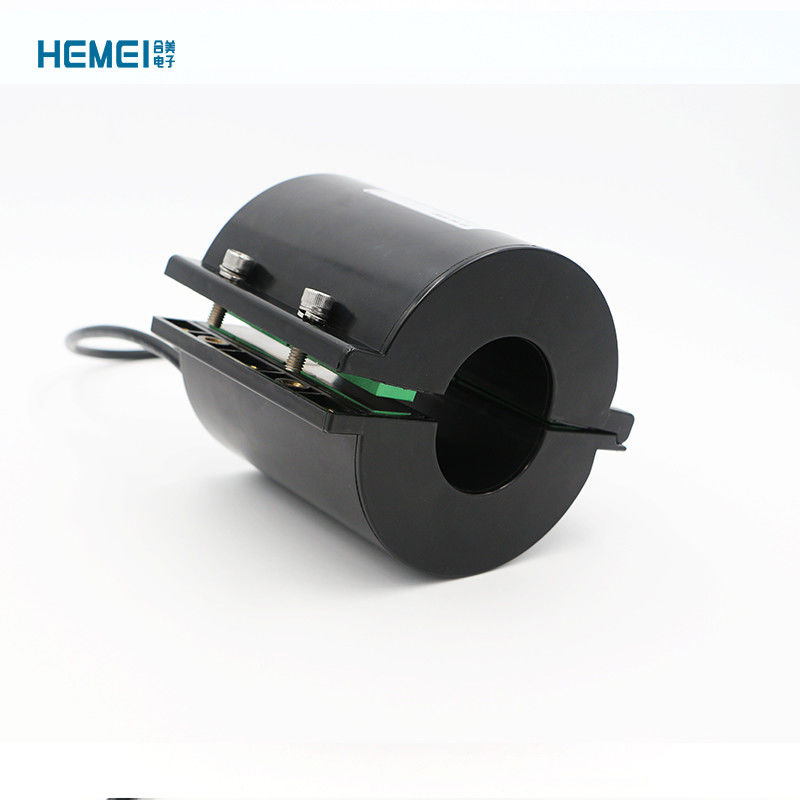

Silicon Steel 5VA Current Transformer Power Supply Cable Underground Branch

Silicon Steel 5VA Current Transformer Power Supply Cable Underground Branch
Silicon Steel 5VA Current Transformer Power Supply Cable Underground Branch

Large Image :  Silicon Steel 5VA Current Transformer Power Supply Cable Underground Branch

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL/ROHS
Model Number: HMKCT-45HW
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Silicon Steel 5VA Current Transformer Power Supply Cable Underground Branch

Description
Name: CT Power Extraction Device Core: Silicon Steel
Primary Input: 0A-2000A Output Current: 5VA
Application: Rail Accuracy: 0.1%
High Light:

5VA Current Transformer Power Supply

,

ct 2000A Current Transformer Power Supply

,

5A 5VA cable current transformer

CT Power Extraction Device Current Transformer For Overhead Cables, Underground Branch Cables, Branch Boxes

HEMEI is a high-tech enterprise specializing in the research and development, production and sales of CT power taking devices (CT power taking devices) in the power system high-voltage power taking industry. Customers provide a complete solution for obtaining electricity from 10KV-500KV high-voltage environments to help customers obtain electricity in extremely special and demanding high-voltage environments.

Feature:

1. The electric CT is an open type, which is easy to install and easy to operate.
2. The inner diameter of the transformer can be selected according to the diameter of the primary high-voltage line.
3. Transformers of different models and specifications can be matched according to the current of the primary side high-voltage line.
Five, the characteristics of power conversion module
Power system structure
1. The starting current is small.
2. Overcome the impact of the ultra-high input voltage at the input end on the power supply.
3. The power-taking CT has an overcurrent protection device, which can be used to install high-voltage cables with a large current range.
4. Output stable DC power supply.
5. The power supply has a battery intelligent charging and discharging interface, which can continue to maintain the normal operation of the equipment when the power supply on the primary side is insufficient or the power is out.



Parameter:

Model Input current(A) Output current accuracy
HMKCT-45HW 300A-2000A 5A/1A 0.5
HMKCT-55HW 400A-1000A 5A/1A 0.5




diagram

Silicon Steel 5VA Current Transformer Power Supply Cable Underground Branch 0

Silicon Steel 5VA Current Transformer Power Supply Cable Underground Branch 1
