Mn Zn Ferrite Choke Coil Core Inductor Low Power Loss 66UH Min

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

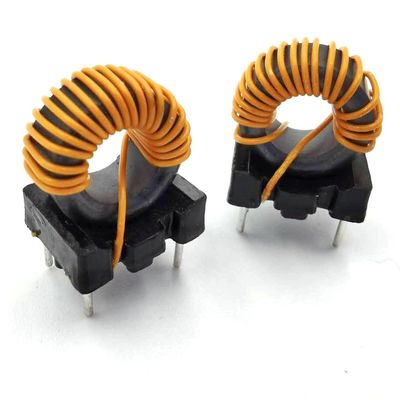

Mn Zn Ferrite Choke Coil Core Inductor Low Power Loss 66UH Min

Mn Zn Ferrite Choke Coil Core Inductor Low Power Loss 66UH Min
Mn Zn Ferrite Choke Coil Core Inductor Low Power Loss 66UH Min

Large Image :  Mn Zn Ferrite Choke Coil Core Inductor Low Power Loss 66UH Min

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE
Model Number: T12-7-6 66UH
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Mn Zn Ferrite Choke Coil Core Inductor Low Power Loss 66UH Min

Description
Materail: Mn、Zn Inductance: 66UH Min
DC Resistance: 120mΩ MAX Turn Ratio: 20
Voltage: 0.3V Packing: Carton
Range Of Application: Choke Quality Certification: ISO9001
High Light:

66UH Min Inductor ferrite choke coil

,

0.3V Mn Zn ferrite choke coil

,

0.3V Mn Loss ferrite choke core

Mn Zn Ferrite Core Transformer High Frequency Low Power Loss

Small fixed inductors are usually made of enameled wires directly wound on the magnetic core. They are mainly used in circuits such as filtering, oscillation, trapping, delay, etc. It has two types of packaging, sealed and non-sealed, and the two types are also Both have vertical and horizontal shape structures.

Applications

switching power output and smoothing circuits

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
1-2
66uH MIN
1KHZ 0.3V
2 DC resistance
1-2
120mΩ MAX
TH2511
3



Mn Zn Ferrite Choke Coil Core Inductor Low Power Loss 66UH Min 0
