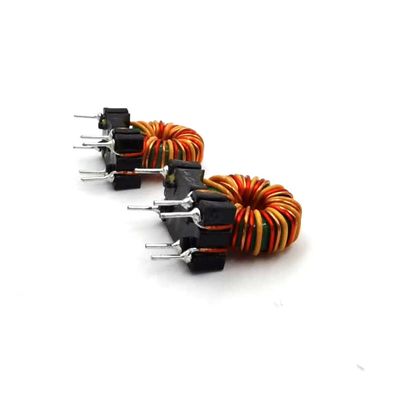

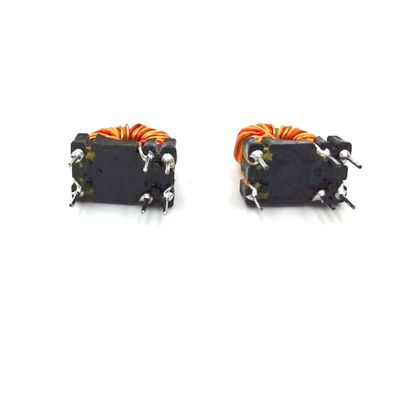

EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors

EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors
EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors

Large Image :  EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM1264-11T
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH
Contact Now

EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors

Description
Materail: Mn、Zn Inductance: 600~1000uH
DC Resistance: 10KHZ 0.3V 30Ω Turn Ratio: 11
Voltage: 500VAC Test Condition: 2S/3mA
High Light:

2S 3mA Choke Coil Inductor

,

10KHZ 1000uH magnetic Choke Coil Inductor

,

10KHZ ring color code inductors

Low Core Loss At Frequency Three-Wire Filter Inductor For Television Receiver

The factory specializes in the production of UU filters, EE inductors, integrated inductors, NR inductors, color ring inductors/color code inductors, I-shaped inductors, magnetic ring (ring) coils, common mode inductors, adjustable inductors, power inductors, filter inductors, Air core coils, chip inductors, EMI filters, magnetic bead inductors, broadband six-hole magnetic beads, laminated magnetic beads, magnetic rod coils, etc. a full range of vertical (radial) and horizontal (axial) inductors passive components Device.

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
L1-6＝L2-5＝L3-4
600~1000uH
10KHZ 0.3V 30Ω
2 Voltage
1,2,3-6,5,4
500VAC
2S/3mA
3



Diagram

EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors 0

EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors 1EE Choke Coil Inductor 1000uH 10KHZ Ring Color Code Inductors 2
