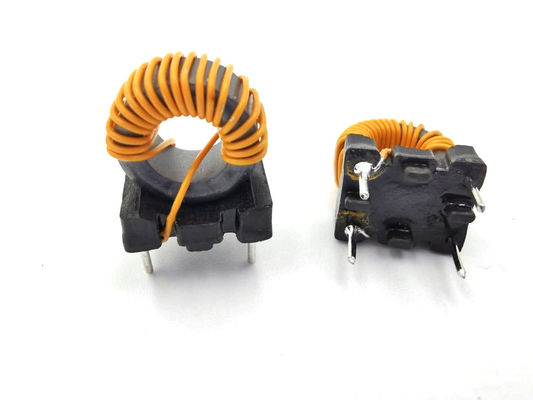

Choke Mn Zn Ferrite Core Inductor 0.3V 20 Turn Ratio High Frequency

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

Choke Mn Zn Ferrite Core Inductor 0.3V 20 Turn Ratio High Frequency

Choke Mn Zn Ferrite Core Inductor 0.3V 20 Turn Ratio High Frequency
Choke Mn Zn Ferrite Core Inductor 0.3V 20 Turn Ratio High Frequency

Large Image :  Choke Mn Zn Ferrite Core Inductor 0.3V 20 Turn Ratio High Frequency

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE
Model Number: T12-7-6 66UH
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Choke Mn Zn Ferrite Core Inductor 0.3V 20 Turn Ratio High Frequency

Description
Materail: Mn、Zn Inductance: 66UH Min
DC Resistance: 120mΩ MAX Turn Ratio: 20
Voltage: 0.3V Quality Certification: ISO9001
High Light:

Choke Inductor mn zn ferrite core

,

0.3V mn zn ferrite core

,

0.3V ferrite core inductor

Mn Zn Ferrite Core Transformer High Frequency Low Power Loss

Inductance (inductance coil) is an electromagnetic induction element wound with insulated wires (such as enameled wire, yarn covered wire, etc.), and it is also one of the commonly used components in electronic circuits. The inductance is a series of coaxial turns made from enameled wire, yarn covered wire or plastic wire on an insulating skeleton or magnetic core or iron core. It is represented by the letter "L" in the circuit, and the main function is to The signal is isolated, filtered or combined with capacitors, resistors, etc. to form a resonant circuit.

NO Item Test pin Test value Condition
1 Inductance
1-2
66uH MIN
1KHZ 0.3V
2 DC resistance
1-2
120mΩ MAX
TH2511
3



Choke Mn Zn Ferrite Core Inductor 0.3V 20 Turn Ratio High Frequency 0
