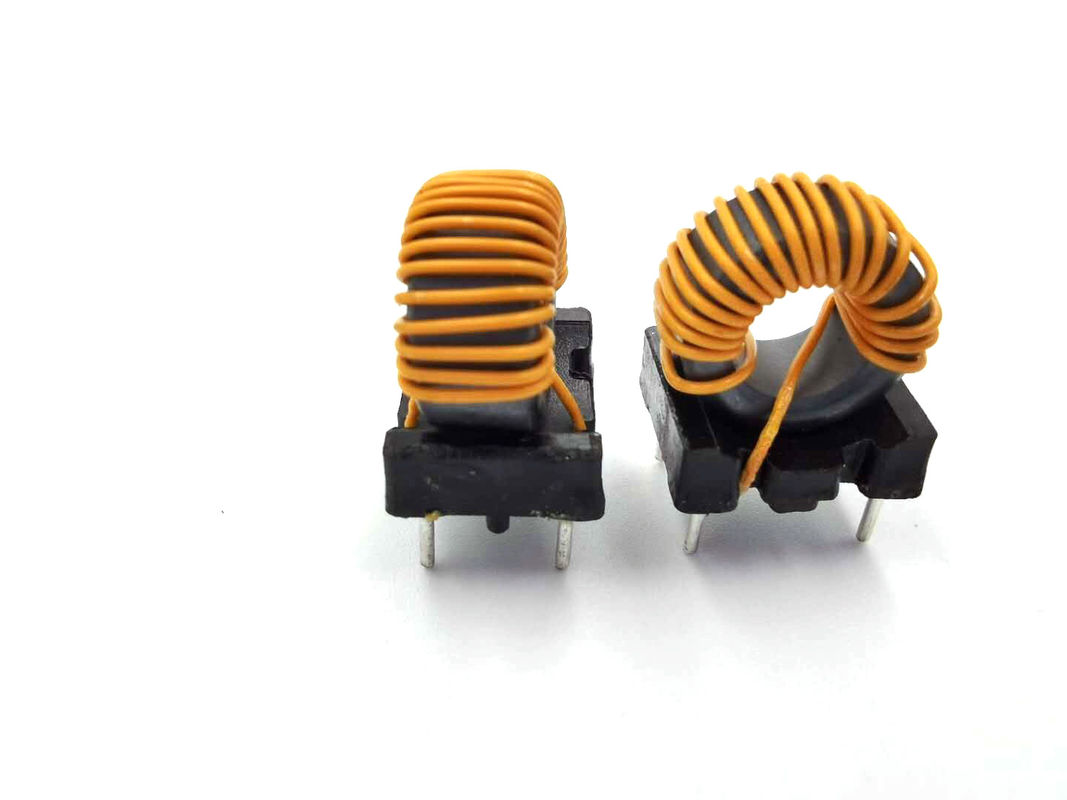

Mn Ferrite Choke Coil Inductor Audio Vcd Transformer Choke Coil

Mn Ferrite Choke Coil Inductor Audio Vcd Transformer Choke Coil
Mn Ferrite Choke Coil Inductor Audio Vcd Transformer Choke Coil

Large Image :  Mn Ferrite Choke Coil Inductor Audio Vcd Transformer Choke Coil

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: T12-7-6 66UH
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Mn Ferrite Choke Coil Inductor Audio Vcd Transformer Choke Coil

Description
Materail: Mn、Zn Packing: Carton
Range Of Application: Choke Quality Certification: ISO9001
High Light:

0.3V Mn Choke Coil Inductor

,

VCD Zn Ferrite Choke Coil Inductor

,

Audio Vcd transformer choke coil

Mn Zn Ferrite Core Transformer Choke Coil Inductor For Compact Fluorescent Lamp,Monitor,Audio,Vcd,Dcd

Inductance (inductance coil) is an electromagnetic induction element wound with insulated wires (such as enameled wire, yarn covered wire, etc.), and it is also one of the commonly used components in electronic circuits. The inductance is a series of coaxial turns made from enameled wire, yarn covered wire or plastic wire on an insulating skeleton or magnetic core or iron core. It is represented by the letter "L" in the circuit, and the main function is to The signal is isolated, filtered or combined with capacitors, resistors, etc. to form a resonant circuit.

Small fixed inductors are usually made of enameled wires directly wound on the magnetic core. They are mainly used in circuits such as filtering, oscillation, trapping, delay, etc. It has two types of packaging, sealed and non-sealed, and the two types are also Both have vertical and horizontal shape structures.

Applications

switching power output and smoothing circuits

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
1-2
66uH MIN
1KHZ 0.3V
2 DC resistance
1-2
120mΩ MAX
TH2511
3
