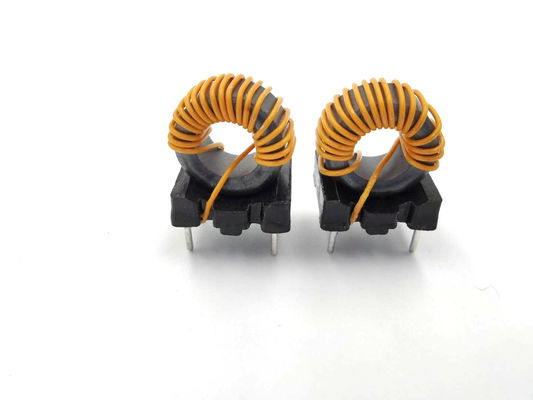

Transformer Filter Choke Inductor Mn Zn Ferrite Core Inductor ISO9001

Transformer Filter Choke Inductor Mn Zn Ferrite Core Inductor ISO9001
Transformer Filter Choke Inductor Mn Zn Ferrite Core Inductor ISO9001

Large Image :  Transformer Filter Choke Inductor Mn Zn Ferrite Core Inductor ISO9001

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: T12-7-6 66UH
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Transformer Filter Choke Inductor Mn Zn Ferrite Core Inductor ISO9001

Description
Materail: Mn、Zn Packing: Carton
Range Of Application: Choke Quality Certification: ISO9001
High Light:

Transformer filter choke inductor

,

ISO9001 filter choke inductor

,

Mn Zn ferrite core inductor

Mn Zn Ferrite Core Transformer Choke Coil Inductor

Inductance (inductance of an ideal inductor) is an attribute of a closed loop. When the coil passes current, a magnetic field is induced in the coil, and the induced magnetic field will generate an induced current to resist the current passing through the coil.Inductance is a physical quantity that measures the ability of a coil to generate electromagnetic induction. When an unsteady current is applied to the coil, a changing magnetic field will be generated around it. The greater the power into the coil, the higher the intensity of the excited magnetic field, and vice versa.

Applications

switching power output and smoothing circuits

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
1-2
66uH MIN
1KHZ 0.3V
2 DC resistance
1-2
120mΩ MAX
TH2511
3
