Carrier PLC Coupling Transformer Magnetic 13UH Min 4500V AC

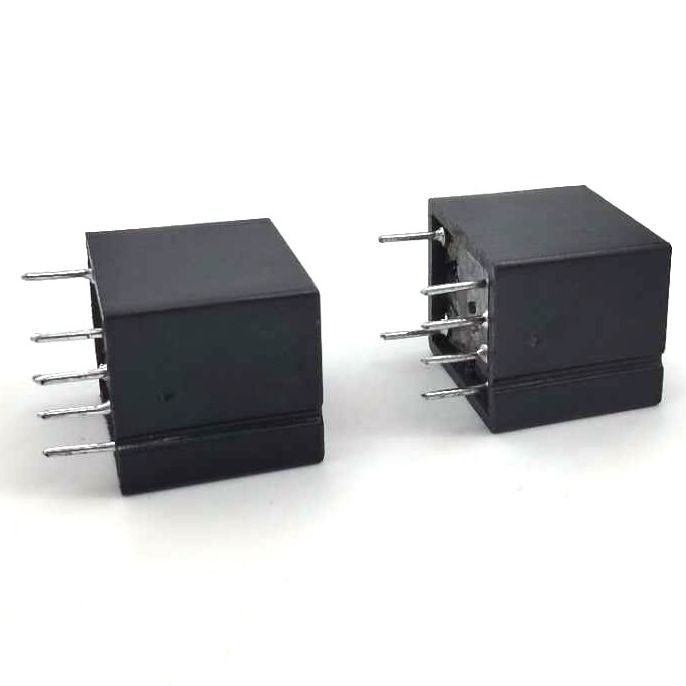

Large Image : Carrier PLC Coupling Transformer Magnetic 13UH Min 4500V AC

Product Details:

Place of Origin:	China
Brand Name:	HEMEI
Model Number:	HM-QPLC111

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD0.1~0.5/PCS
Packaging Details:	Standard Carton
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000PCS/MONTH

Contact Now

Carrier PLC Coupling Transformer Magnetic 13UH Min 4500V AC

Description

Materail:	Mn、Zn	Inductance:	13UH Min
DC Resistance:	42mΩ MAX	Turn Ratio:	6
Voltage:	4500VAC	Packing:	Carton
High Light:	13UH Min PLC Coupling Transformer , Carrier PLC Coupling Transformer , 4500V AC magnetic coupling transformer

Carrier coupling transformer

Applications

Compact fluorescent lamp
Television receiver
Radio cassette player
PC power supply
Monitor,audio,VCD,DCD
UPS
The electronic apparatus
The noise rejection
Induction cooker,etc.

Feature

High current capacity
Low core loss at frequency
High reliability, efficiency
Small packaged size
Operating Temperature: -30°C to +80°C
Electrical Specifications at 20°C

NO	Item	Test pin	Test value	Condition
1	Inductance	1-2/5-6	13uH MIN	100KHZ 0.1V
2	DC resistance	1-2/5-6	42mΩ MAX	TH2512B
3	Voltage	N1/N2 N1/N3	4500VAC	60S/1mA
4	working frequency	N1-N2-N3	1MHZ-30MHZ

diagram

Carrier PLC Coupling Transformer Magnetic 13UH Min 4500V AC 0

Carrier PLC Coupling Transformer Magnetic 13UH Min 4500V AC 1
