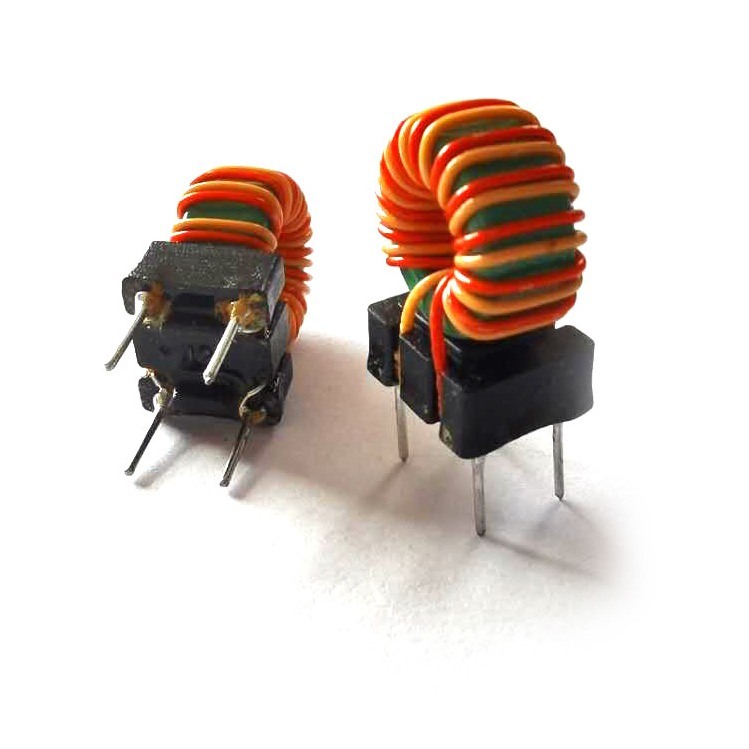

Electronic Common Mode Choke Inductance Emi 1KHZ High Current

Electronic Common Mode Choke Inductance Emi 1KHZ High Current
Electronic Common Mode Choke Inductance Emi 1KHZ High Current

Large Image :  Electronic Common Mode Choke Inductance Emi 1KHZ High Current

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM1277963-13T
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Electronic Common Mode Choke Inductance Emi 1KHZ High Current

Description
Inductance: 600uh MIN DC Resistance: 30mΩ MAX
Voltage: 4000VAC Test Condition: 1KHZ 0.1V
High Light:

Emi common mode choke inductance

,

Electronic common mode choke inductance

,

1KHZ high current common mode choke

Common Mode Inductors For Suppressing Emi Noise Of Electronic Equipment

Adopt ferrite core, double wire parallel winding

Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
4-1/3-2
600uh MIN
1KHZ 0.1V
2 Voltage
4-1/3-2
4000VAC
10S/2mA
3 DC resistance
4-1=3-2
30mΩ MAX
TH2511



Diagram

Electronic Common Mode Choke Inductance Emi 1KHZ High Current 0

Electronic Common Mode Choke Inductance Emi 1KHZ High Current 1
