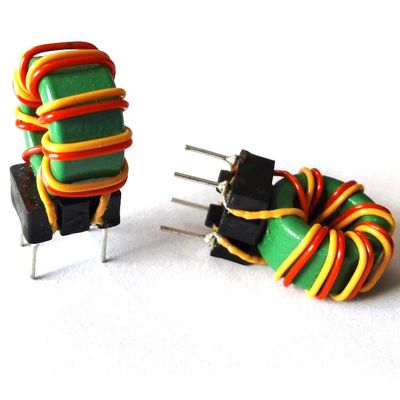

Enameled Wire PLC Coupling Transformer 3000V AC 680uH Toroidal Common Mode Choke

Factory Customized Toroidal Common Mode Choke With Enameled Wire

Inductor is a circuit element that generates electromotive force due to the change of the current passing through, thereby resisting the change of current. This property is called inductance.
There are many types of inductance components, which are called differently depending on their appearance and function. The enameled wire is wound in multiple turns, and the inductors often used as electromagnets and transformers are also called coils according to their appearance. It is used to provide large reactance to high frequency through direct current or low frequency. Depending on the function, it is often called choke or choke. Often used with ferromagnetic materials to install larger inductors used in transformers, motors and generators, also called windings. The wire passes through the magnetic substance without a coil shape. It often acts as a small inductance for high-frequency filtering, and is often called a bead according to its appearance.

Applications

• Compact fluorescent lamp
• Television receiver
• Radio cassette player
• PC power supply
• Monitor,audio,VCD,DCD
• UPS
• The electronic apparatus
• The noise rejection
• Induction cooker,etc.
