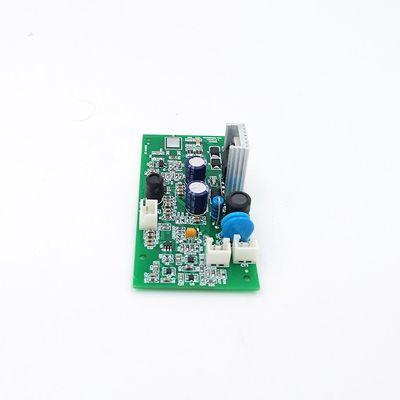

UL Switching Mode Power Supply Circuit LPS Voltage Regulators

UL Switching Mode Power Supply Circuit LPS Voltage Regulators
UL Switching Mode Power Supply Circuit LPS Voltage Regulators

Large Image :  UL Switching Mode Power Supply Circuit LPS Voltage Regulators

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: HM001
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month

UL Switching Mode Power Supply Circuit LPS Voltage Regulators

Description
Input Voltage: Power Supply Voltage Starting Mode: Self-excited Switching Power Supply
Modulation System: Pfm/PWM Output Power: Less Than 1W
High Light:

LPS Switching Mode Power Supply

,

UL Switching Mode Power Supply

,

LPS switch mode power supply circuit

CT Switching Power Supply

D.C. to D.C. converters and D.C. to A.C. Converters belong to the category of Switched Mode Power Supplies (SMPS). The various types of voltage regulators, used in Linear Power Supplies (LPS), fall in the category of dissipative regulator, as they have a voltage control element usually transistor or zener diode which dissipates power equal to the voltage difference between an unregulated input voltage and a fixed supply voltage multiplied by the current flowing through it. The switching regulator acts as a continuously variable power converter and hence its efficiency is negligibly affected by the voltage difference. Hence the switching regulator is also known as ‘non-dissipative regulator’.

Application:

Suitable for motor protection ,relay protection,small current grounding system

Suitable for electrical fire monitoring systems

Flexible output method

Through structure ,epoxy resin casting,good stability

High permeability permalloy or nanocrystalline ,with good linearity and high sensitivity

Excellent balance characteristics and extremely strong immunity to electromagnetic fields.split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.



Parameter:

Item Model Input current(A) Output voltage(V) Output power(W/mW)
HM010M HM010M-3.3 2-10 3.3 10mW
HM050M HM050M-5.0 5-10 5 50mW
HM010M HM010M-3.3 5-10 3.3 100mW
HM500M HM500M-5.0 5-10 5 500mW
HM001W HM001W-5.0 10-15 5 1W
HM003W HM003W-5.0 15-20 5 3W
HM005W HM005W-12 20-30 12 5W
HM010W HM010W-12 30-40 12 10W

UL Switching Mode Power Supply Circuit LPS Voltage Regulators 0
