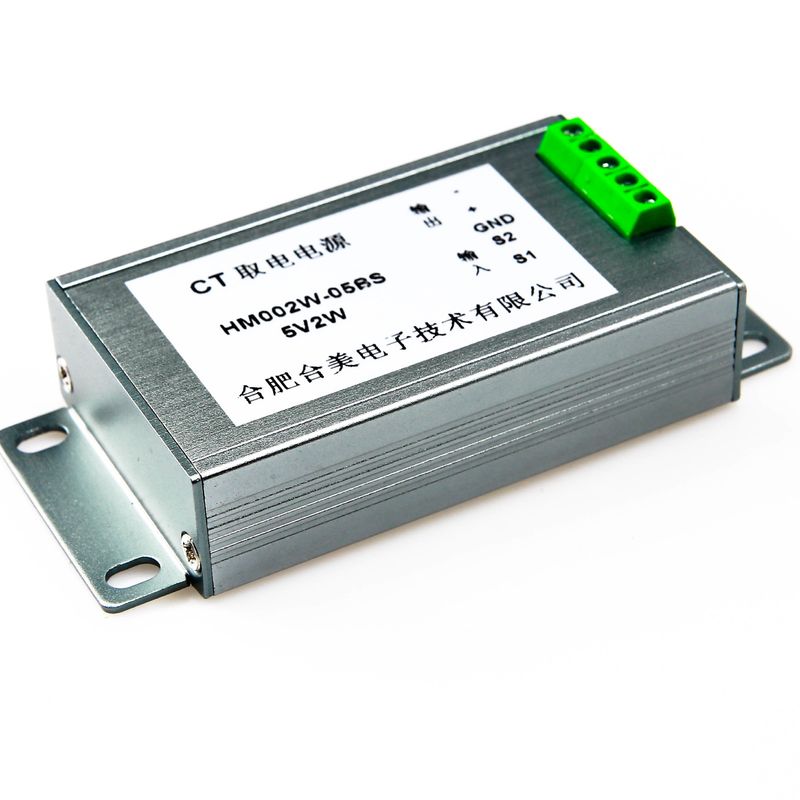

1W PWM CT Power Supply UL Current Transformer Switch Electricity

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

1W PWM CT Power Supply UL Current Transformer Switch Electricity

1W PWM CT Power Supply UL Current Transformer Switch Electricity
1W PWM CT Power Supply UL Current Transformer Switch Electricity

Large Image :  1W PWM CT Power Supply UL Current Transformer Switch Electricity

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: HM001
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month

1W PWM CT Power Supply UL Current Transformer Switch Electricity

Description
Input Voltage: Power Supply Voltage Starting Mode: Self-excited Switching Power Supply
Modulation System: Pfm/PWM Output Power: Less Than 1W
High Light:

1W PWM CT Power Supply

,

UL CT Power Supply

,

UL current transformer switch

Switching Mode Power Supply For CT Power Supply



Features

1. Start to take electricity from a small load current and maintain a regulated output.

2. CT with open circuit and high current impact protection, and maintain a regulated output.

3. Open type current transformer structure, easy to install and unload.

4. Insulating shell, epoxy potting, explosion-proof and flame-retardant, safe to use.

5. Replace high-pressure PT, economical and practical.



Parameter:

Item Model Input current(A) Output voltage(V) Output power(W/mW)
HM010M HM010M-3.3 2-10 3.3 10mW
HM050M HM050M-5.0 5-10 5 50mW
HM010M HM010M-3.3 5-10 3.3 100mW
HM500M HM500M-5.0 5-10 5 500mW
HM001W HM001W-5.0 10-15 5 1W
HM003W HM003W-5.0 15-20 5 3W
HM005W HM005W-12 20-30 12 5W
HM010W HM010W-12 30-40 12 10W

1W PWM CT Power Supply UL Current Transformer Switch Electricity 0
