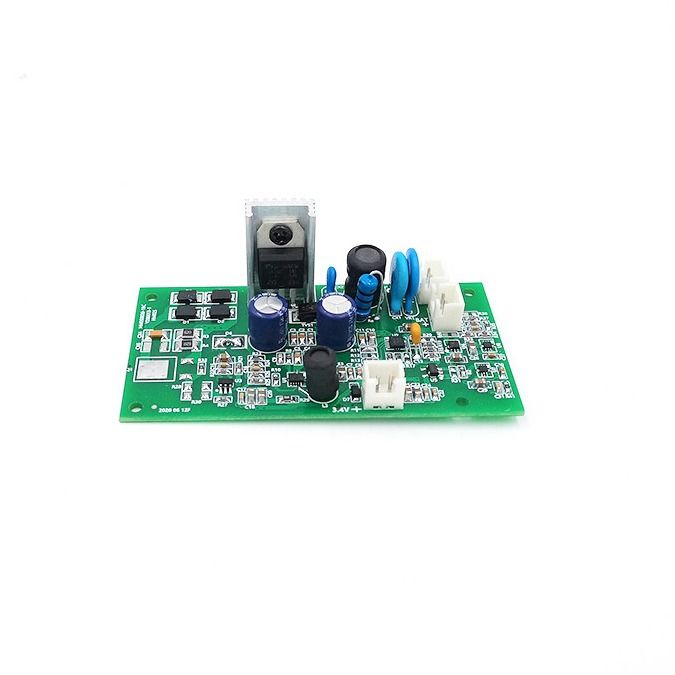

Ct Switching Mode Power Supply PWM Current Transformer

Ct Switching Mode Power Supply PWM Current Transformer
Ct Switching Mode Power Supply PWM Current Transformer

Large Image :  Ct Switching Mode Power Supply PWM Current Transformer

Product Details:
Place of Origin: China
Brand Name: HEMEI
Certification: CE/UL
Model Number: HM001
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month

Ct Switching Mode Power Supply PWM Current Transformer

Description
Input Voltage: Power Supply Voltage Starting Mode: Self-excited Switching Power Supply
Modulation System: Pfm/PWM Output Power: Less Than 1W
High Light:

ct Switching Mode Power Supply

,

PWM Switching Mode Power Supply

,

PWM switch power supply

CT Switching Mode Power Supply



Application:

Suitable for motor protection ,relay protection,small current grounding system

Suitable for electrical fire monitoring systems

Flexible output method

Through structure ,epoxy resin casting,good stability

High permeability permalloy or nanocrystalline ,with good linearity and high sensitivity

Excellent balance characteristics and extremely strong immunity to electromagnetic fields.split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.



Parameter:

Item Model Input current(A) Output voltage(V) Output power(W/mW)
HM010M HM010M-3.3 2-10 3.3 10mW
HM050M HM050M-5.0 5-10 5 50mW
HM010M HM010M-3.3 5-10 3.3 100mW
HM500M HM500M-5.0 5-10 5 500mW
HM001W HM001W-5.0 10-15 5 1W
HM003W HM003W-5.0 15-20 5 3W
HM005W HM005W-12 20-30 12 5W
HM010W HM010W-12 30-40 12 10W
