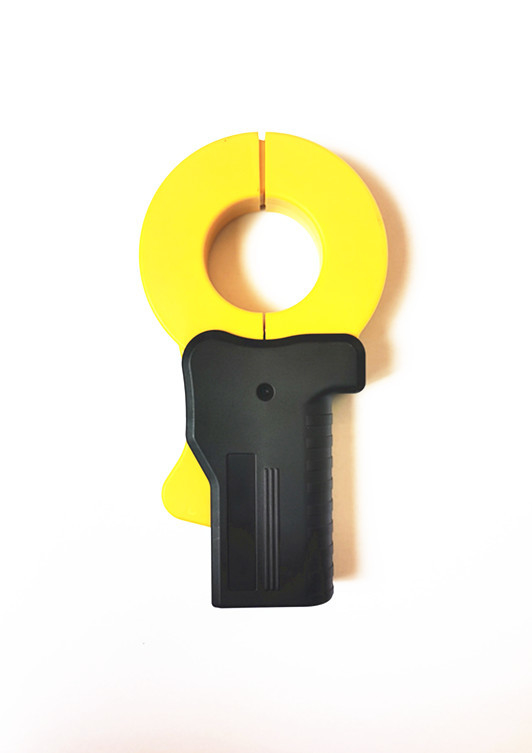

High Accuracy Clamp On Current Transformer CT 0.1A~2000A

High Accuracy Clamp On Current Transformer CT 0.1A~2000A
High Accuracy Clamp On Current Transformer CT 0.1A~2000A

Large Image :  High Accuracy Clamp On Current Transformer CT 0.1A~2000A

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM-CTC1535
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD30~100/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T
Supply Ability: 10000PCS/MONTH
Contact Now

High Accuracy Clamp On Current Transformer CT 0.1A~2000A

Description
Application: Electronic, Instrument, Audio, Lighting Phase: Single
Insulating Medium: Epoxy Resin Measurement Ranget: 0.1A-2000A
Turn Ratio: 2000:1 Turns Ratio: 2000T
Installation: Active Type
High Light:

Active Type Clamp On Current Transformer

,

Epoxy Resin Clamp On Current Transformer

,

0.1A Clamp On Current Transformer

High Accuracy Clamp On Current Transformer CT 0.1A~2000A

Split Core Current Transformer Clamp On Type

The HM-CTC1535 is a high performance AC clamp on Current transformer with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.



FEATURES

  • Measurement range of 1A to 3600A AC
  • Large jaw opening designed
  • Improved ergonomic design and easy operation
  • Conforms to EN 61010, 600V CAT III
  • Low phase shift for power measurement
  • Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to 3000AAC
  • Transformation ratio: 1000:5, 2000:5, 3000:5
  • Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
  • Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
  • UL, CE markHigh Accuracy Clamp On Current Transformer CT 0.1A~2000A 0
  • diagramHigh Accuracy Clamp On Current Transformer CT 0.1A~2000A 1
