Product Details:
|
| Application: | Electronic, Instrument, Audio, Lighting | Usage: | Measurement |
|---|---|---|---|
| Insulating Medium: | Epoxy Resin | Voltage Transformation Principle: | Electromagnetic Type |
| High Precision: | -0.001%~+0.001% | Transport Package: | Standard Carton |
| Lead Time: | 7-15 Working Days | Primary Input: | -600A~+600A |
| Turns Ratio: | 2000t | Linearity: | 2ppm |
| High Light: | 0.02 Class High Precision Current Sensor,2000t Ratio High Precision Current Sensor,0.02 Class power current sensor |
||

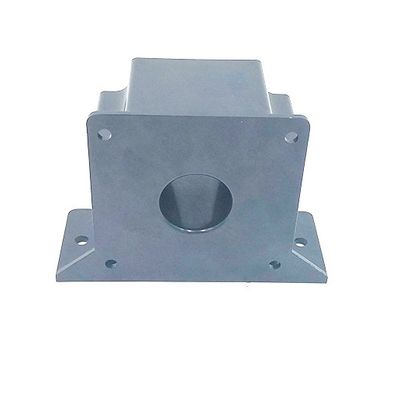

High Precision Current Sensor for Power Test
It is a current sensor that can measure DC, AC, pulse, and various irregular waveforms under the condition of complete isolation of the primary and secondary sides. It is mainly used in the fields of measurement verification and measurement calibration that require high accuracy, as well as high sensitivity, High-stability and high-reliability power quality analysis, power analyzer, medical, aerospace, missile, naval and other fields.
Product Technical Index
| Model | Rated Current(A) | Total Precision | ppm | precision(HZ) | Small signal bandwidth(-3dB/KHZ) |
| HMM-600 | ±600 | ±0.001% | 2 | ±0.02% | 500 |
| HMA-200 | ±200 | ±0.003% | 3 | ±0.02% | 500 |
| HMA-400 | ±400 | ±0.003% | 3 | ±0.02% | 500 |

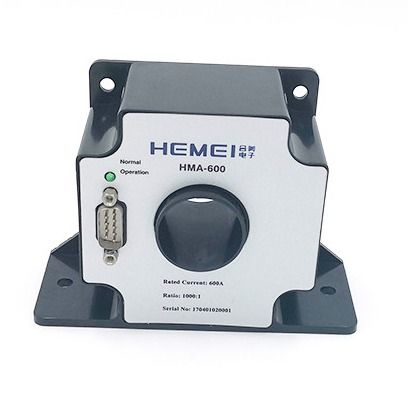

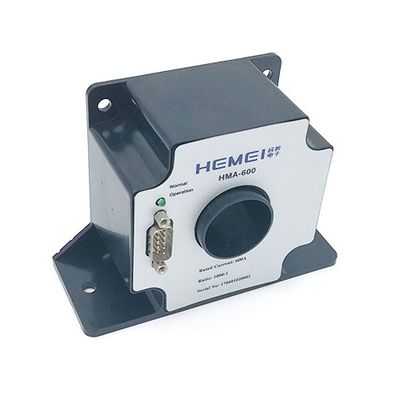

| HMA-600 | ±600 | ±0.003% | 3 | ±0.02% | 500 |
| HMA-5000 | ±5000 | ±0.007% | 10 | ±0.03% | 100 |
| HMA-10000 | ±10000 | ±0.007% | 10 | ±0.05% | 50 |
HM SERIES PRECISION CURRENT TRANSFORMER
Features:
1,high-precision
2,high bandwidth
3,low zero drift
4,low temperature drift
5 Portability
6 Flexible display The display size is flexible and optional
7 Mixed signal oscilloscope-MSO
8 Waveform generator
9. Ultra-long storage depth . Serial bus decoder
10. High resolution oscilloscope
11. High resolution and selectable resolution
Application:
Used to measure 50A-1000A AC and DC pulse current, can be used for measurement standards or high-precision industrial testing.
Power testing, motor drives, electric vehicles, wind power, solar energy, inverters, aircraft and ships, rail transit, medical equipment and other fields.
