Home ProductsHigh Precision Current Sensor

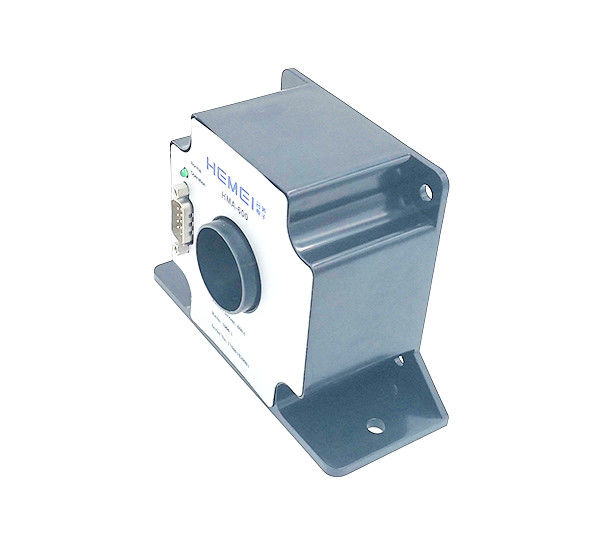

Medical High Precision Current Sensor 600A Epoxy Resin High Resolution Oscilloscope

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

Medical High Precision Current Sensor 600A Epoxy Resin High Resolution Oscilloscope

Medical High Precision Current Sensor 600A Epoxy Resin High Resolution Oscilloscope
Medical High Precision Current Sensor 600A Epoxy Resin High Resolution Oscilloscope

Large Image :  Medical High Precision Current Sensor 600A Epoxy Resin High Resolution Oscilloscope

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HMA-600
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD100~4000/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month

Medical High Precision Current Sensor 600A Epoxy Resin High Resolution Oscilloscope

Description
Application: Electronic, Instrument, Audio, Lighting Usage: Measurement
Insulating Medium: Epoxy Resin Voltage Transformation Principle: Electromagnetic Type
High Precision: -0.001%~+0.001% Primary Input: -600A~+600A
Turns Ratio: 2000t Linearity: 2ppm
High Light:

600A High Precision Current Sensor

,

Medical High Precision Current Sensor

,

Epoxy Resin high resolution oscilloscope

Hemei Waveform Generator High Bandwidth High Resolution Oscilloscope Current Sensor For Medical Equipment

Product Technical Index

Model Rated Current(A) Total Precision ppm precision(HZ) Small signal bandwidth(-3dB/KHZ)
HMM-600 ±600 ±0.001% 2 ±0.02% 500
HMA-200 ±200 ±0.003% 3 ±0.02% 500
HMA-400 ±400 ±0.003% 3 ±0.02% 500
HMA-600 ±600 ±0.003% 3 ±0.02% 500
HMA-5000 ±5000 ±0.007% 10 ±0.03% 100
HMA-10000 ±10000 ±0.007% 10 ±0.05% 50



HM SERIES PRECISION CURRENT TRANSFORMER

Features:

1,high-precision

2,high bandwidth

3,low zero drift

4,low temperature drift

5,High resolution oscilloscope

6, low insertion loss

7,Excellent linearity, strong anti-interference ability

8,stability and fast response

9,high sensitivity Very low noise

10, high resolution, very small angular difference

11, low temperature drift, wide frequency band

12,low offset current analog output



Application:

Used to measure 50A-1000A AC and DC pulse current, can be used for measurement standards or high-precision industrial testing.

Power testing, motor drives, electric vehicles, wind power, solar energy, inverters, aircraft and ships, rail transit, medical equipment and other fields.

Medical High Precision Current Sensor 600A Epoxy Resin High Resolution Oscilloscope 0
