Low Drift High Precision Current Sensor Motor Broadband Electromagnetic

Low Drift High Precision Current Sensor Motor Broadband Electromagnetic
Low Drift High Precision Current Sensor Motor Broadband Electromagnetic

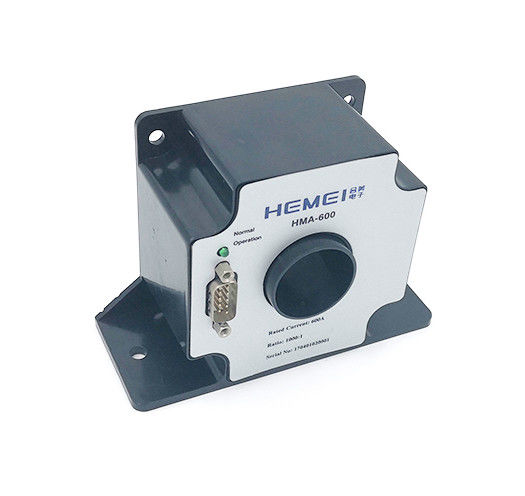

Large Image :  Low Drift High Precision Current Sensor Motor Broadband Electromagnetic

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HMA-600
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD100~4000/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/Month

Low Drift High Precision Current Sensor Motor Broadband Electromagnetic

Description
Application: Electronic, Instrument, Audio, Lighting Usage: Measurement
Insulating Medium: Epoxy Resin Voltage Transformation Principle: Electromagnetic Type
High Precision: -0.001%~+0.001% Primary Input: -600A~+600A
Turns Ratio: 2000t Linearity: 2ppm
Operation Condition: Outdoor Payment Terms: T/T, Western Union, Paypal
High Light:

Broadband High Precision Current Sensor

,

Low Drift High Precision Current Sensor

,

Electromagnetic motor curret sensor

High Precision/Good Linearity/Low Drift/Broadband Current Sensor

Product Technical Index

Model Rated Current(A) Total Precision ppm precision(HZ) Small signal bandwidth(-3dB/KHZ)
HMM-600 ±600 ±0.001% 2 ±0.02% 500
HMA-200 ±200 ±0.003% 3 ±0.02% 500
HMA-400 ±400 ±0.003% 3 ±0.02% 500
HMA-600 ±600 ±0.003% 3 ±0.02% 500
HMA-5000 ±5000 ±0.007% 10 ±0.03% 100
HMA-10000 ±10000 ±0.007% 10 ±0.05% 50



HM SERIES PRECISION CURRENT TRANSFORMER

Features:

1,high-precision

2,high bandwidth

3,low zero drift

4,low temperature drift



Application:

Used to measure 50A-1000A AC and DC pulse current, can be used for measurement standards or high-precision industrial testing.

Power testing, motor drives, electric vehicles, wind power, solar energy, inverters, aircraft and ships, rail transit, medical equipment and other fields.Metrology verification and calibration,Laboratory current measurement ship,Instrumentation (such as power analyzer) New energy,Medical equipment (such as MRI) Rail transit,Battery pack inspection aerospace,Power Control Industrial Measurement.
