Mn Zn Ee Ferrite Core Transformer Choke Coil 0.3V 66UH Min

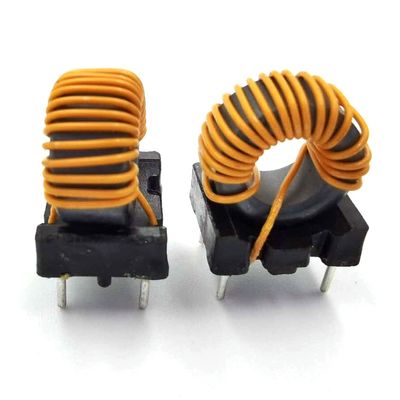

Large Image : Mn Zn Ee Ferrite Core Transformer Choke Coil 0.3V 66UH Min

Product Details:

Place of Origin:	China
Brand Name:	HEMEI
Model Number:	T12-7-6 66UH

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD0.1~0.5/PCS
Packaging Details:	Standard Carton
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000PCS/MONTH

Contact Now

Mn Zn Ee Ferrite Core Transformer Choke Coil 0.3V 66UH Min

Description

Materail:	Mn、Zn	Inductance:	66UH Min
DC Resistance:	120mΩ MAX	Turn Ratio:	20
Voltage:	0.3V	Packing:	Carton
Range Of Application:	Choke	Quality Certification:	ISO9001
High Light:	Mn Zn Ferrite Core Transformer , 0.3V Ferrite Core Transformer , Choke ee core transformer

Toroidal Common Mode Choke inductor

Mn Zn Ferrite Core Transformer High Frequency Low Power Loss

Applications

switching power output and smoothing circuits

Compact fluorescent lamp
Television receiver
Radio cassette player
PC power supply
Monitor,audio,VCD,DCD
UPS
The electronic apparatus
The noise rejection
Induction cooker,etc.

Feature

High current capacity
Low core loss at frequency
High reliability, efficiency
Small packaged size
Operating Temperature: -30°C to +80°C
Electrical Specifications at 20°C

NO	Item	Test pin	Test value	Condition
1	Inductance	1-2	66uH MIN	1KHZ 0.3V
2	DC resistance	1-2	120mΩ MAX	TH2511
3

Mn Zn Ee Ferrite Core Transformer Choke Coil 0.3V 66UH Min 0
