300A Permalloy Core Transformer Toroidal Single Layer Power Lines

300A Permalloy Core Transformer Toroidal Single Layer Power Lines
300A Permalloy Core Transformer Toroidal Single Layer Power Lines

Large Image :  300A Permalloy Core Transformer Toroidal Single Layer Power Lines

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HMKCT-45HW
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiable
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

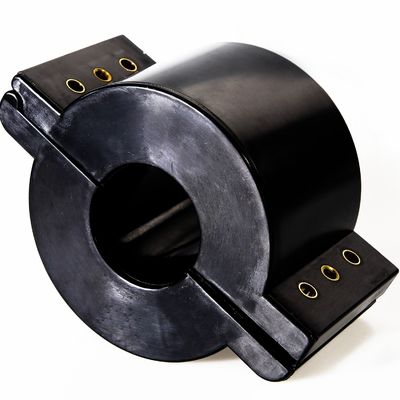

300A Permalloy Core Transformer Toroidal Single Layer Power Lines

Description
Model NO.: HMKCT-45HW Winding Form: Single Layer & Tightly Wound Type
Magnetic Circuit Structure: Single Stage Type Core: Permalloy
Primary Input: 300A-2000A Output Current: 5A/1A
Turns Ratio: 5VA Accuracy: 0.5%
Application: Power Lines Type: Open Type
High Light:

300A permalloy core transformer

,

5A permalloy core transformer

,

2000A toroidal core transformer

Toroidal Transformer Current Sensor Self-Supplying Power Supply Device for Underground Mine



1. The electric CT is an open type, which is easy to install and easy to operate.
2. The inner diameter of the transformer can be selected according to the diameter of the primary high-voltage line.
3. Transformers of different models and specifications can be matched according to the current of the primary side high-voltage line.

Application range:

The CT power supply is mainly used on power lines, which can solve the problem that the equipment cannot get other power supply.

 Technical Features

1) Since the CT is installed on the power line cable, its insulation is relatively high

2) CT power installation is more convenient, and the price is low.

3) It is more suitable for the power supply of low-power equipment



The power-taking device is a kind of power source that obtains electric energy through the principle of CT electromagnetic induction
The device consists of two parts: current transformer (CT) and power conversion module.

A high-stability current induction power supply with battery charging and discharging management. This series of current induction power supplies use potential lake technology and high-frequency isolation DC/DC conversion technology, supplemented by power supply status monitoring and battery charging and discharging management, and supporting special energy mutual inductance With small size and high power conversion efficiency, it meets the requirements of safe power supply in a variety of harsh conditions such as large current impacts and load jumps in the power grid.



Feature:

1. Reasonably select the induction power supply and its energy storage components according to the conventional operating value of the wire current, power curve and electric power;

2. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon;

3. The principle of the induction power supply module is completely different from that of the conventional power supply, and it must not be connected to other power interfaces;



Parameter:

Model Input current(A) Output current accuracy
HMKCT-45HW 300A-2000A 5A/1A 0.5
HMKCT-55HW 400A-1000A 5A/1A 0.5




diagram

300A Permalloy Core Transformer Toroidal Single Layer Power Lines 0

300A Permalloy Core Transformer Toroidal Single Layer Power Lines 1300A Permalloy Core Transformer Toroidal Single Layer Power Lines 2
