Product Details:
|
| Materail: | Mn、Zn | Inductance: | 680uH±30% |
|---|---|---|---|
| DC Resistance: | 50 MΩ MAX | Turn Ratio: | 8 |
| Voltage: | 3000V AC | Packing: | Carton |
| High Light: | DCD common mode choke filter,3000V AC common mode choke filter,Television receiver ferrite choke core |
||

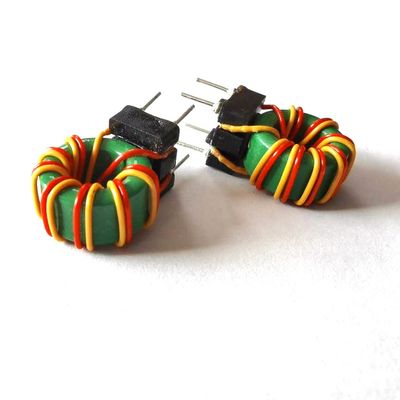

Ferrite Cores Common-Mode Filters
Common-mode filters usually use ferrite cores, double-wired in parallel. The low differential mode noise signal suppresses the interference source and is difficult to deform in the high-speed signal. Good noise suppression countermeasures, high common mode noise suppression and low differential mode noise signal suppression.
Applications
| NO | Item | Test pin | Test value | Condition |
| 1 | Inductance |
N1＝N2＝N3＝N4
|
680uH±30%
|
1KHZ 0.3V
|
| 2 | DC resistance |
N1＝N2＝N3＝N4
|
50 mΩ MAX
|
TH2511
|
| 3 |
