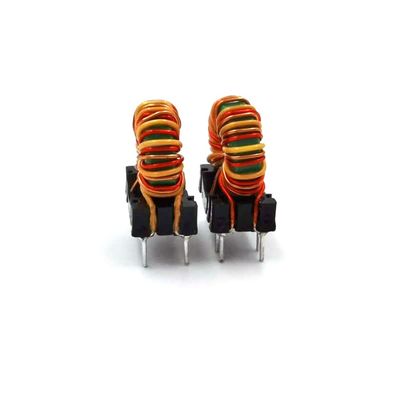

Three Wire PLC Coupling Transformer Low Core Common Mode Choke Filter 10KHZ

Certification
China Hefei Hemei Electronics Technology Co., Ltd certification
I'm Online Chat Now

Three Wire PLC Coupling Transformer Low Core Common Mode Choke Filter 10KHZ

Three Wire PLC Coupling Transformer Low Core Common Mode Choke Filter 10KHZ
Three Wire PLC Coupling Transformer Low Core Common Mode Choke Filter 10KHZ

Large Image :  Three Wire PLC Coupling Transformer Low Core Common Mode Choke Filter 10KHZ

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM1264-11T
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH

Three Wire PLC Coupling Transformer Low Core Common Mode Choke Filter 10KHZ

Description
Materail: Mn、Zn Inductance: 600~1000uH
DC Resistance: 10KHZ 0.3V 30Ω Turn Ratio: 11
Voltage: 500VAC Test Condition: 2S/3mA
High Light:

10KHZ PLC Coupling Transformer

,

Three Wire PLC Coupling Transformer

,

Low Core common mode choke filter

Low Core Loss At Frequency Three-Wire Filter Inductor For Television Receiver

Products are used in automotive electronics, televisions, DVD/VCD, telephones, electronic toys, mobile communication equipment, lighting, medical equipment, computer products and peripherals, network xDSL filters, modems, global positioning systems, AC-DC/DC -DC converters, up/down converters, amplifiers, audio-visual equipment, audio equipment, noise filters, power supplies, analyzers, displays, switching regulators, SCR and TRIAC control circuits, automation systems, etc.

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
L1-6=L2-5=L3-4
600~1000uH
10KHZ 0.3V 30Ω
2 Voltage
1,2,3-6,5,4
500VAC
2S/3mA
3



Diagram
