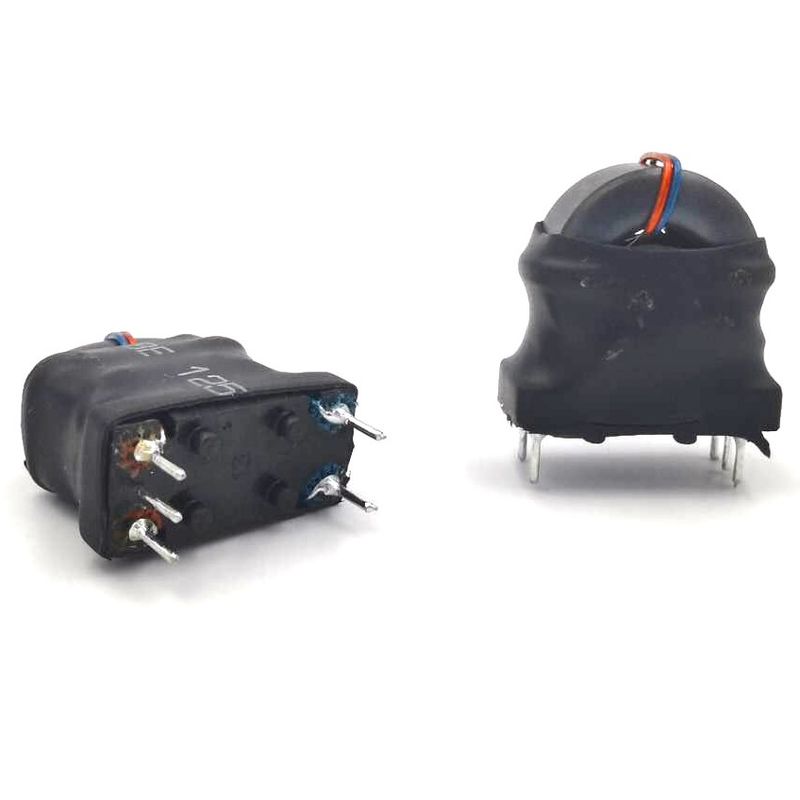

SMD Choke Coil Inductor Toroidal 10kHz Switch Power Supply

SMD Choke Coil Inductor Toroidal 10kHz Switch Power Supply
SMD Choke Coil Inductor Toroidal 10kHz Switch Power Supply

Large Image :  SMD Choke Coil Inductor Toroidal 10kHz Switch Power Supply

Product Details:
Place of Origin: China
Brand Name: HEMEI
Model Number: HM5.757.041
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD0.1~0.5/PCS
Packaging Details: Standard Carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000PCS/MONTH
Contact Now

SMD Choke Coil Inductor Toroidal 10kHz Switch Power Supply

Description
Materail: Mn、Zn Inductance: 20uH Min
Condition: 1KHZ 0.3V Turn Ratio: 6
Voltage: 4000VAC Packing: Carton
Highlight:

10kHz Choke Coil Inductor

,

SMD Choke Coil Inductor

,

SMD Toroidal Core Inductor

Toroidal Coil Choke Inductors

10kHz Choke Coil SMD Toroidal Core Inductor For Switch Power Supply



Common mode Choke, also known as Common mode Choke, is commonly used to filter Common mode EMI signals in switching power supplies of computers.In board card design, common-mode inductor also plays the role of EMI filter, which is used to suppress the electromagnetic wave emitted by high-speed signal line.

Applications

  • Compact fluorescent lamp
  • Television receiver
  • Radio cassette player
  • PC power supply
  • Monitor,audio,VCD,DCD
  • UPS
  • The electronic apparatus
  • The noise rejection
  • Induction cooker,etc.



Feature
  • High current capacity
  • Low core loss at frequency
  • High reliability, efficiency
  • Small packaged size
  • Operating Temperature: -30°C to +80°C
  • Electrical Specifications at 20°C
NO Item Test pin Test value Condition
1 Inductance
N1＝N2＝N3＝N4
20uH Min
1KHZ 0.3V
2 DC resistance
N1＝N2＝N3＝N4
 4000VAC 10s/1mA
3



Diagram

SMD Choke Coil Inductor Toroidal 10kHz Switch Power Supply 0

Tag:

Transformer Choke Coil Inductor,

5000V DC inductive choke,

5000V DC ethernet common mode choke
