Product Details:
|
| Materail: | Mn、Zn、Fe | Model: | HM-QPLC451 |
|---|---|---|---|
| Packing: | Carton | Name: | Carrier Isolation Coupler |
| High Light: | Fe Zn common mode choke,W1 common mode choke,Zn Carrier isolation coupler |
||

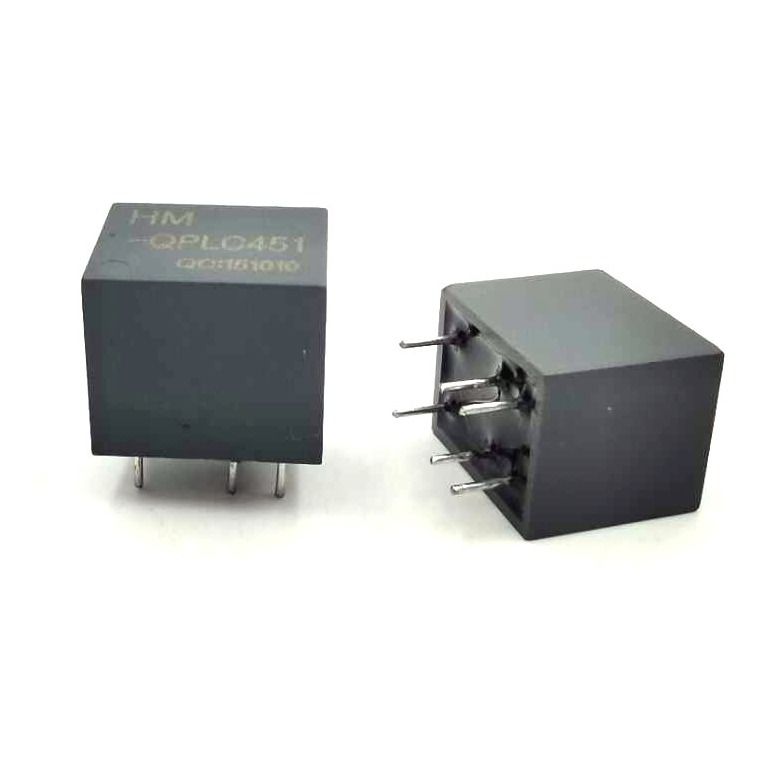

Carrier Isolation Coupler
Applications desktops, laptops, DSC, computer peripheral,Interphone,Wifi Microphone
chokes used in double balance mixers, broadband impedance transformers
chokes used in directional couplers for mixes
chokes used in matching power combining and splitting
chokes used in step top box and cable modem
Custom Designs are available to your specifications. *** tested electrical and safety tested.We provide competitive price and flexible delivery time.If the inductor & Transformer information you require is not shown please contact us directly.
| NO | winding | Test pin | Wire diameter | turn ratio |
| 1 | W1 | 1-6 | 0.2mm | 4 |
| 2 | W2 | 2-5 | 0.2mm | 5 |
| 3 | W3 | 3-4 | 0.4mm | 1 |
