HM 2626TS Electronic Apparatus Choke Coil Inductor Ferrite Core Transformer

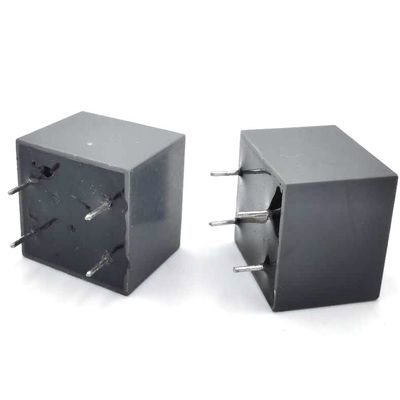

Large Image : HM 2626TS Electronic Apparatus Choke Coil Inductor Ferrite Core Transformer

Product Details:

Place of Origin:	China
Brand Name:	HEMEI
Model Number:	HM2626TS

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	USD0.1~0.5/PCS
Packaging Details:	Standard Carton
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10000PCS/MONTH

Contact Now

HM 2626TS Electronic Apparatus Choke Coil Inductor Ferrite Core Transformer

Description

Materail:	Mn、Zn	Inductance:	1mH ±25%
DC Resistance:	200mΩ MAX	Turn Ratio:	26
Voltage:	AC4000V	Test Condition:	DC=20mA 100KHZ 1V CHENHWA1062A
High Light:	Transformer Choke Coil Inductor , Electronic Apparatus Choke Coil Inductor , Electronic ferrite core transformer

HM2626TS Coupling Transformer Inductor For PC Power Supply

Applications

Compact fluorescent lamp
Television receiver
Radio cassette player
PC power supply
Monitor,audio,VCD,DCD
UPS
The electronic apparatus
The noise rejection
Induction cooker,etc.

Feature

High current capacity
Low core loss at frequency
High reliability, efficiency
Small packaged size
Operating Temperature: -30°C to +80°C
Electrical Specifications at 20°C

NO	Item	Test pin	Test value	Condition
1	Inductance	1-4	1mH ±25%	100KHZ 1V CHENHWA1062A
2	DC resistance	1-4/7-10	200mΩ MAX	YY2811
3	Voltage	1-7/4-10	AC4000V	2mA 50HZ CS2670A

Diagram

HM 2626TS Electronic Apparatus Choke Coil Inductor Ferrite Core Transformer 0

HM 2626TS Electronic Apparatus Choke Coil Inductor Ferrite Core Transformer 1
